Fig. 1: Phase-sensitive OCT imaging of retinal deformations.
From: Retinal thermal deformations measured with phase-sensitive optical coherence tomography in vivo

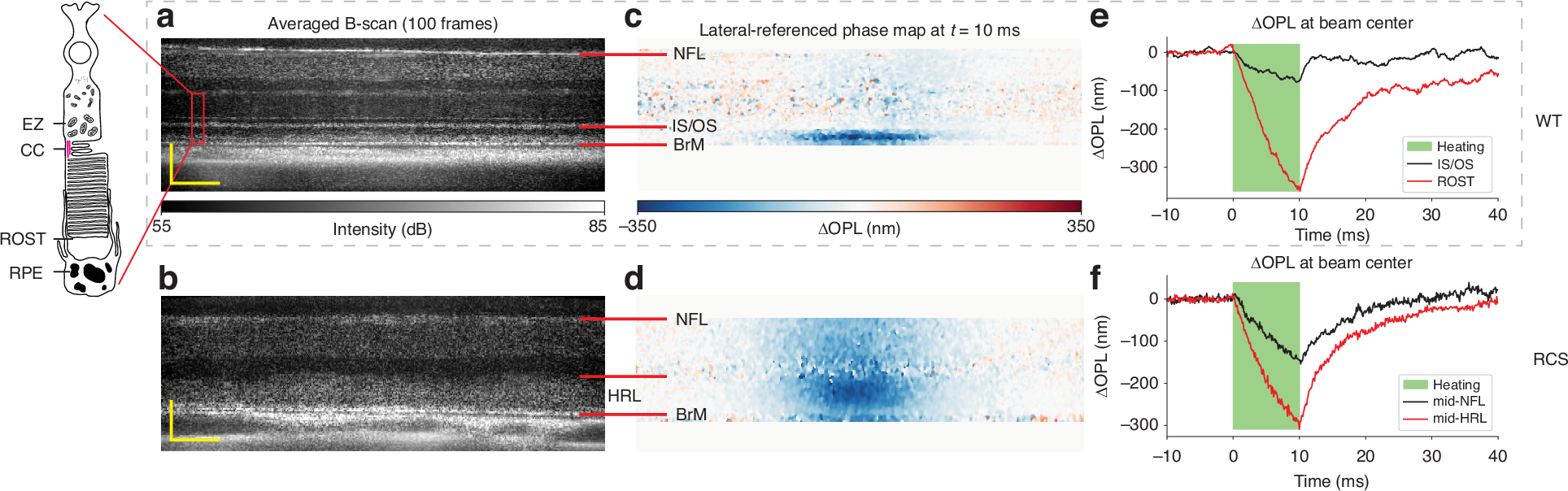

a Averaged B-scan of a 6-month-old wild-type (WT) rat retina. SNR at BrM: 30 dB. Scale bar: axial—90 µm; lateral—50 µm. b Averaged B-scan of a 6-month-old RCS rat retina. SNR at RPE: 30 dB. Scale bar: axial—70 µm; lateral—50 µm. Labels on the photoreceptor diagram and B-scans: NFL nerve fiber layer, IS/OS inner segment and outer segment, BrM Bruch’s membrane, EZ ellipsoid zone, CC connecting cilium, ROST rod outer segment tip, HRL hyperreflective layer, RPE retinal pigment epithelium. c, d Laterally referenced phase maps for WT and RCS rats at t = 10 ms. e, f OPL changes over time at beam center for WT and RCS rats
