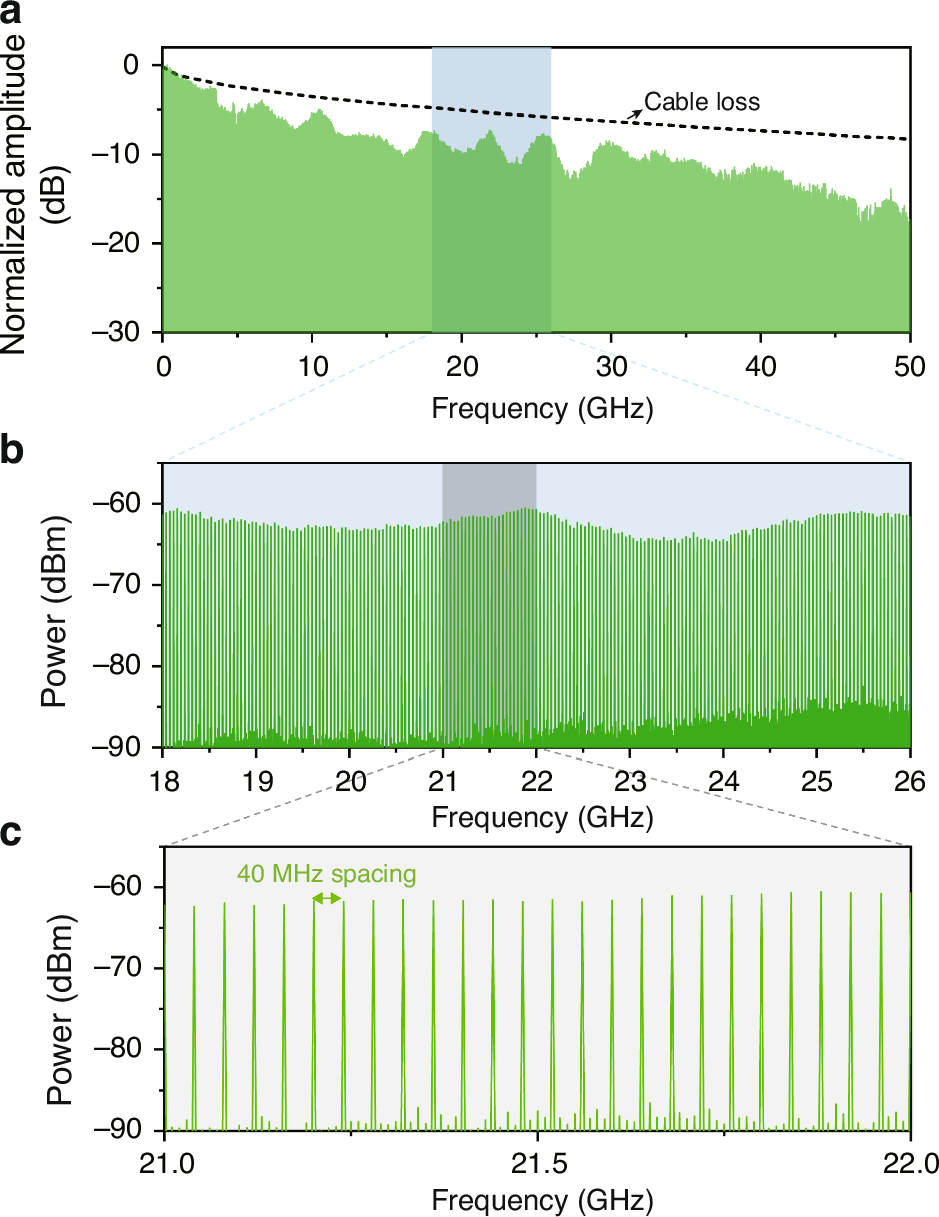

Fig. 4: RF-comb signal generation results.

a Generated RF-comb signal up to 50 GHz presented in normalized amplitude. b Power spectrum of RF-comb signal at K-band. c Zoom-in of the RF-comb power spectrum showing 40-MHz spacing. The resolution bandwidth is set to 51 kHz
