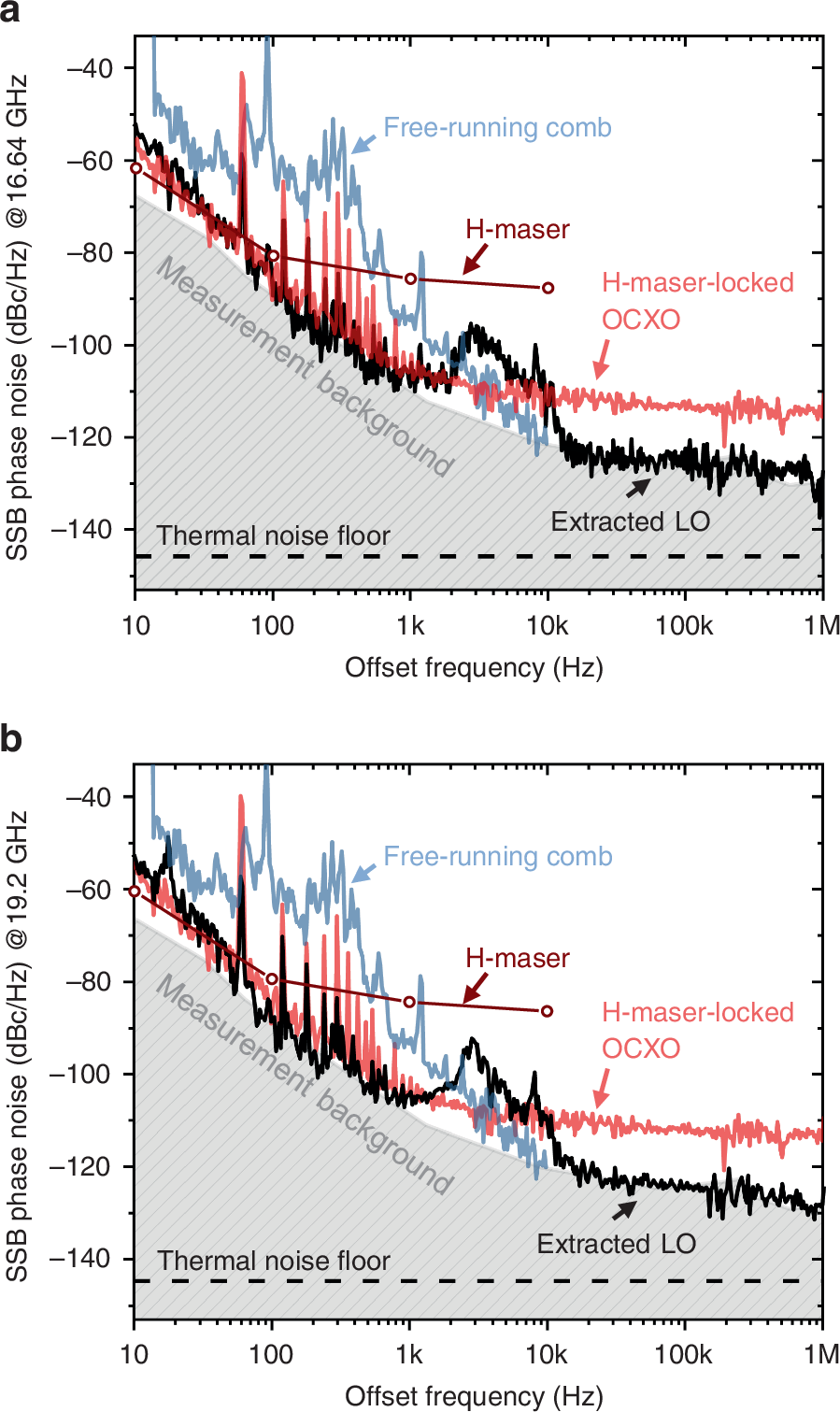

Fig. 5: RF-LO signal phase noise performance.

Measured single-sideband (SSB) absolute phase noise performances of the extracted LOs at a 16.64 GHz and b 19.2 GHz. The thermal noise floor is computed from the input optical power to the photodiode and the RF amplifier noise figure
