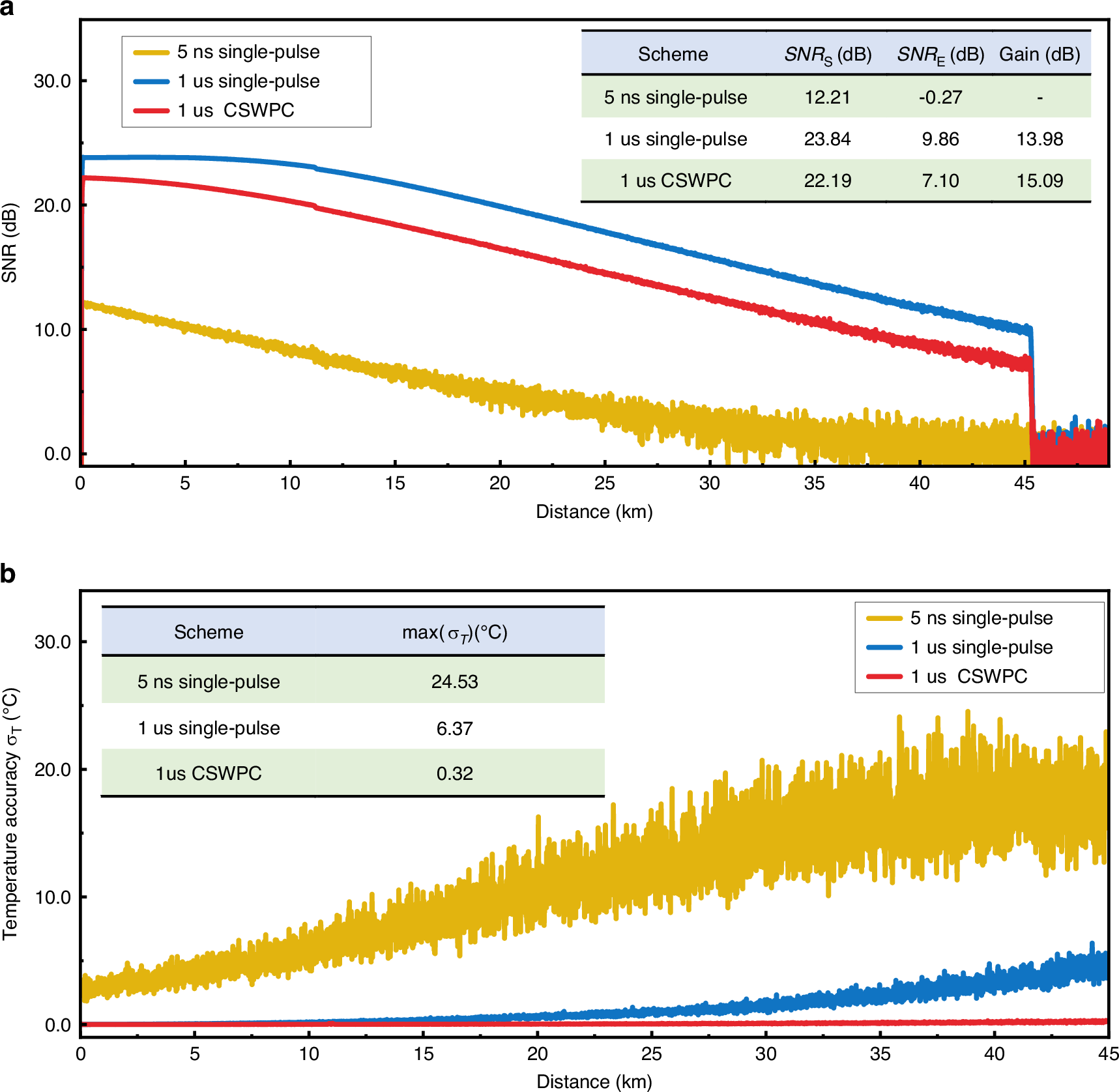

Fig. 4: Effective sensing distance and temperature accuracy under different schemes.
From: 45 km ROTDR with 0.5 m/0.11 °C via complex-domain square-wave width-chirp pulse compression
a SNR at effective sensing distances of different schemes. b Temperature accuracy of different schemes
