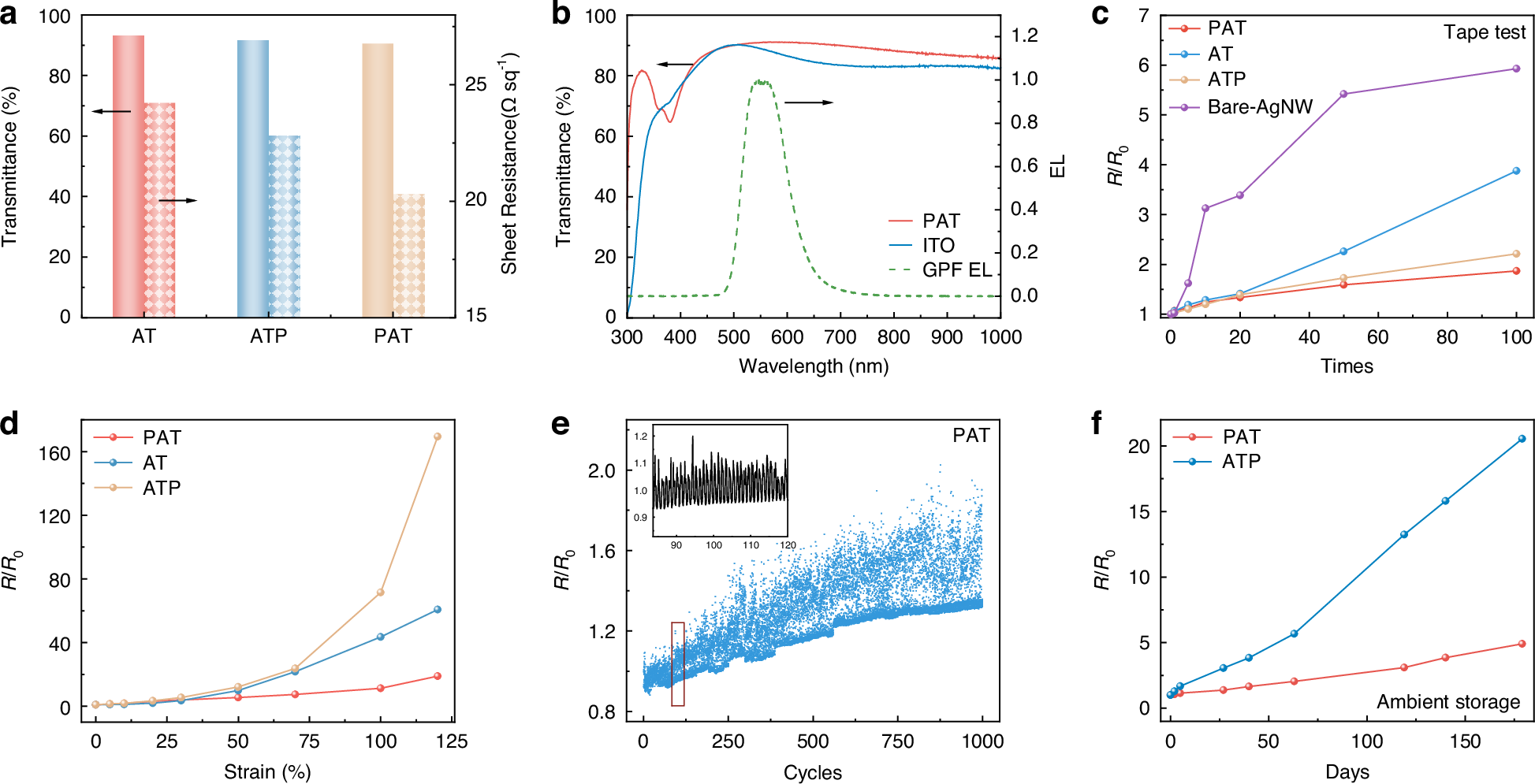

Fig. 5: Optoelectronic and mechanical properties of stretchable electrodes.

From: Intrinsically stretchable organic light-emitting-diode with high brightness and stretchability via elastic-microphase-engineered emitter and dual-embedded electrode

Fig. 5: Optoelectronic and mechanical properties of stretchable electrodes.The alternative text for this image may have been generated using AI.

a Comparison of average visible light transmittance and sheet resistance for the three electrodes (PAT, AT, ATP). b Transmittance spectrum of the PAT electrode and ITO electrode overlaid with the EL emission spectrum of GPF. c Tape test results compare three stretchable electrodes (PAT, AT, ATP) and an AgNW electrode coated on a glass substrate. The data was collected from 3 independent devices. d Resistance variation of the three electrodes (PAT, AT, ATP) under different tensile strain. The data was collected from 3 independent devices. e Long-term mechanical stability of PAT electrode under continuously stretching-releasing cycles with maximum tensile strain of 20%. f Stability of the PAT and ATP electrodes under ambient storage conditions. The data of PAT and ATP was collected from 4 independent devices, respectively
