Fig. 5: Flow cytometric immunophenotypic analysis of the case described in Fig. 2.

From: Small cell/lymphohistiocytic morphology is associated with peripheral blood involvement, CD8 positivity and retained T-cell antigens, but not outcome in adults with ALK+ anaplastic large cell lymphoma

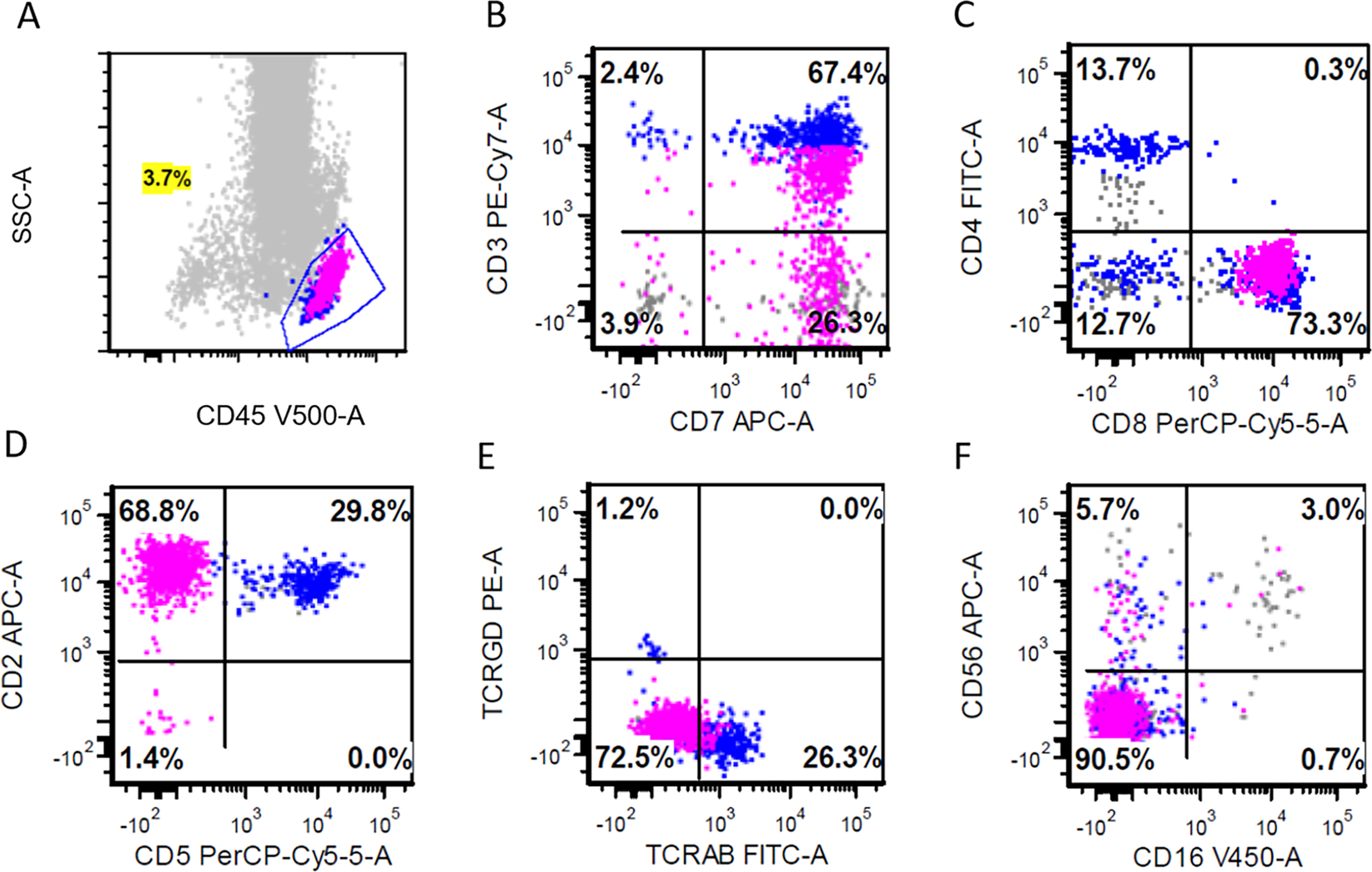

Fig. 5: Flow cytometric immunophenotypic analysis of the case described in Fig. 2.

The lymphoma cells (pink dots) show increased side scatter (SSC) (A) and are positive for CD45 (A), CD3 (B, partial), CD7 (B), CD8 (C), and CD2 (D, increased). The lymphoma cells are negative for CD4 (C), CD5 (D), TCR alpha/beta (E), TCR gamma/delta (E), and CD56 (F). The blue dots represent background reactive T cells.
