Fig. 2: Vote counting results for the brain.
From: Metabolomic changes in animal models of depression: a systematic analysis

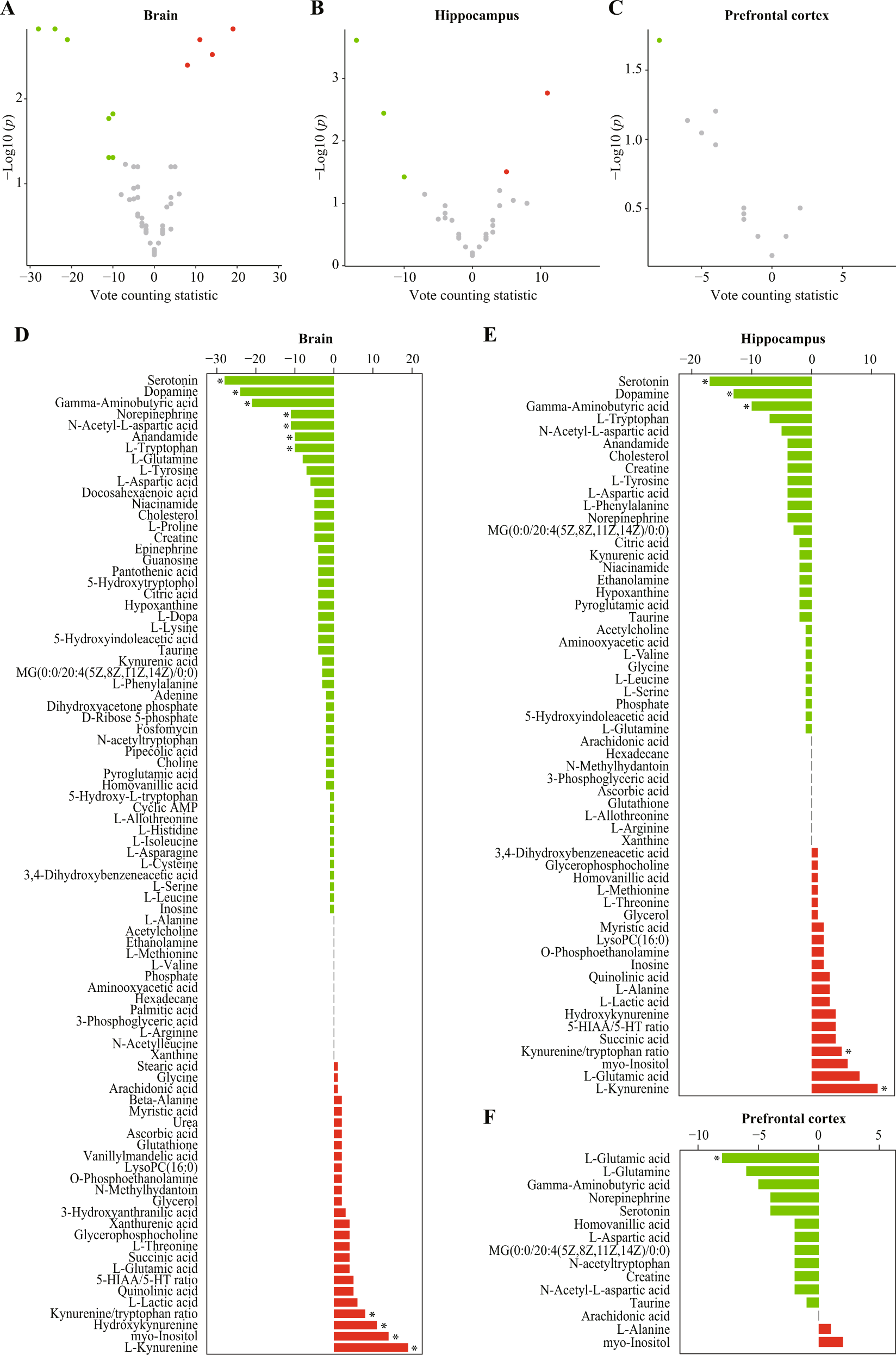

A–C Volcano plots of candidate metabolites in the brain (A), hippocampus (B), and prefrontal cortex (C). Nodes represent candidate metabolites, the x-axis shows the vote counting statistic, and the y-axis shows the −log10 (p value). Red, green, and gray nodes denote consistently upregulated, downregulated, or unaltered metabolites, respectively. D–F Bar plots of candidate metabolites in the brain (D), hippocampus (E), and prefrontal cortex (F). Red and green bars denote the vote counting statistic for each candidate metabolite. An asterisk (*) indicates p < 0.05. 5-HIAA 5-hydroxyindoleacetic acid, 5-HT serotonin, AMP adenosine monophosphate, LysoPC lysophosphatidylcholine, MG monoacylglycerol.
