Fig. 3: Vote counting results for blood.
From: Metabolomic changes in animal models of depression: a systematic analysis

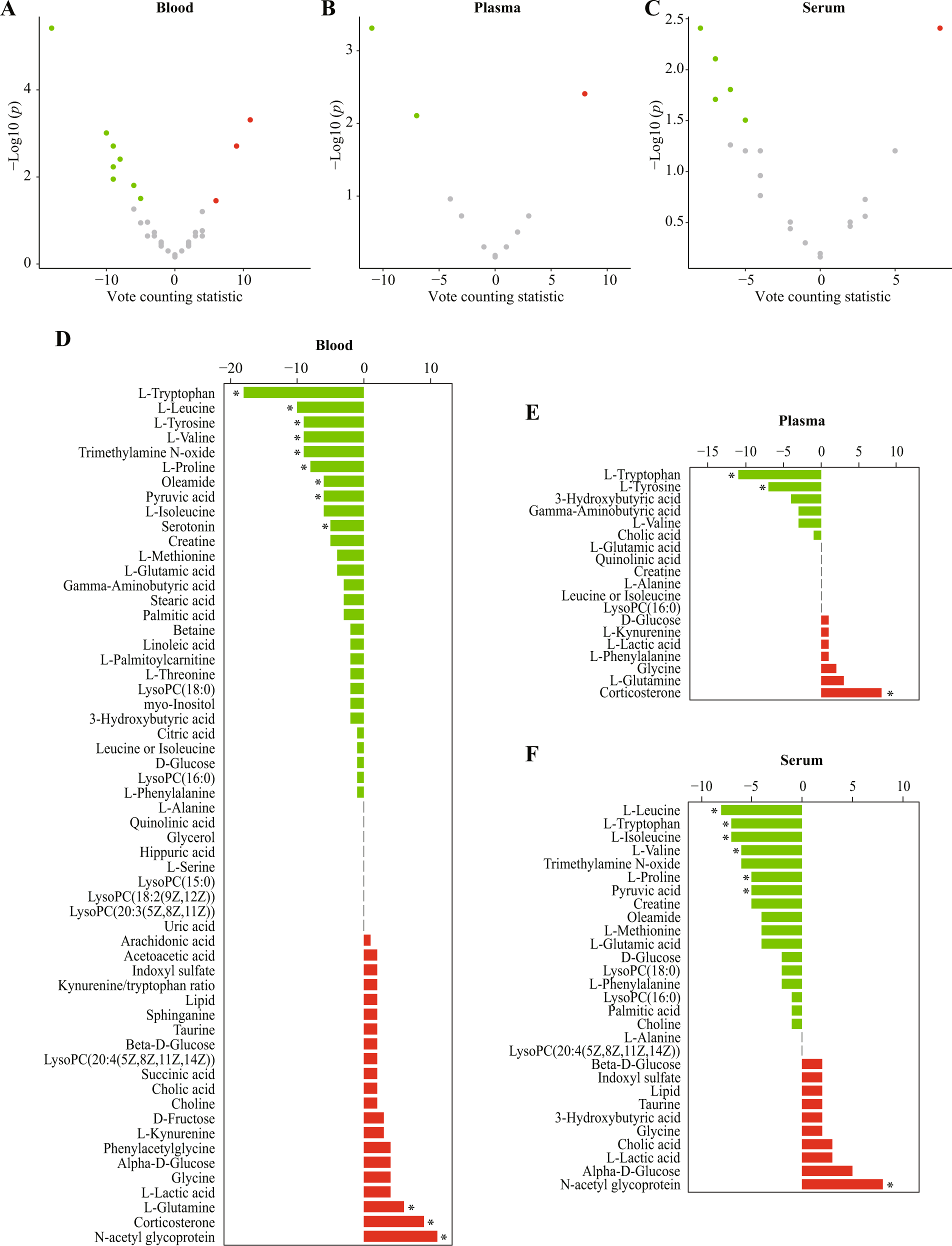

A–C Volcano plots of candidate metabolites in blood (A), plasma (B), and serum (C). Nodes represent candidate metabolites, the x-axis shows the vote counting statistic, and the y-axis shows the −log10 (p value). Red, green, and gray nodes denote consistently upregulated, downregulated, or unaltered metabolites, respectively. D–F Bar plots of candidate metabolites in blood (D), plasma (E), and serum (F). Red and green bars denote the vote counting statistic for each candidate metabolite. An asterisk (*) indicates p < 0.05. LysoPC lysophosphatidylcholine.
