Fig. 4: Vote counting results in urine.
From: Metabolomic changes in animal models of depression: a systematic analysis

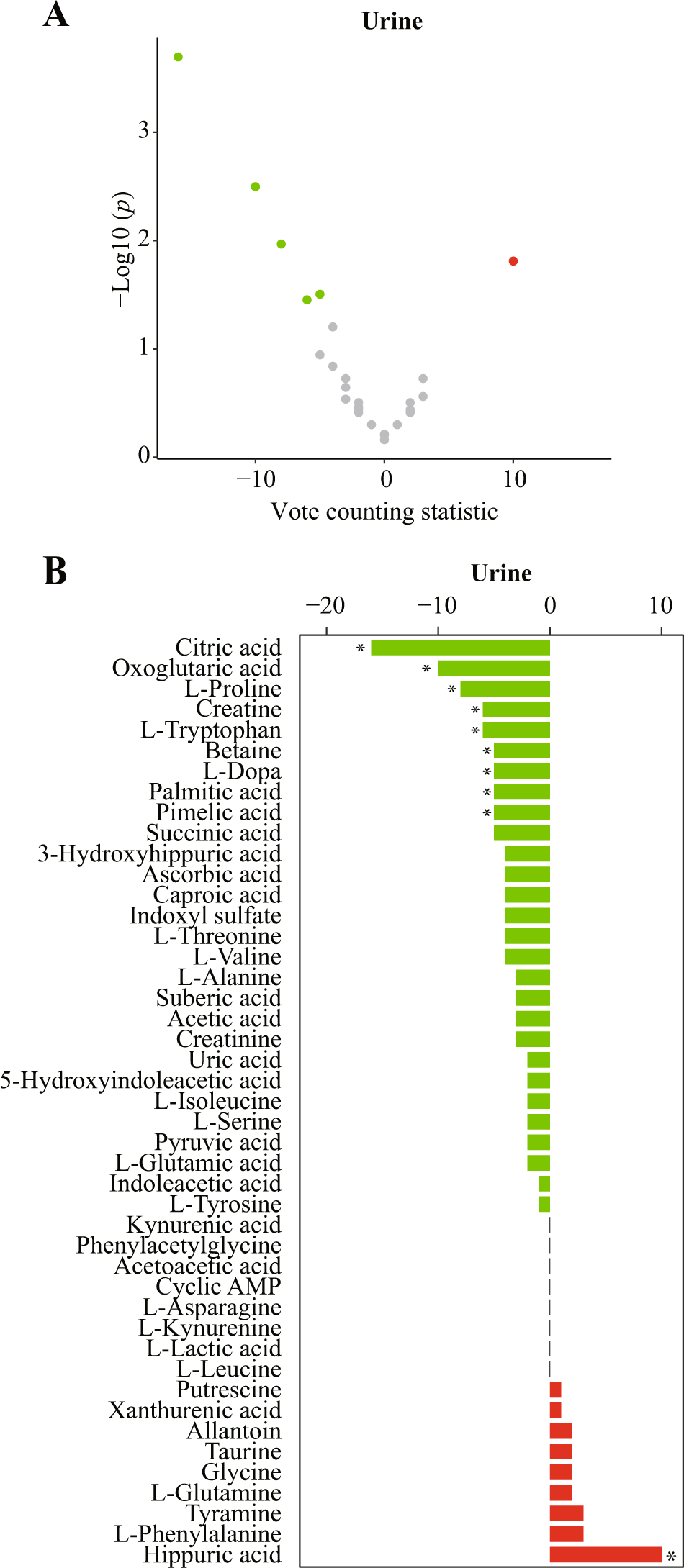

A Volcano plots of candidate metabolites. Nodes represent candidate metabolites, the x-axis shows the vote counting statistic, and the y-axis shows the −log10 (p value). Red, green, and gray nodes denote consistently upregulated, downregulated, or unaltered metabolites, respectively. B Bar plots of candidate metabolites. Red and green bars denote the vote counting statistic for each candidate metabolite. An asterisk (*) indicates a p < 0.05. AMP adenosine monophosphate.
