Fig. 5: Vote counting results in the chronic mild stress (CMS) model.
From: Metabolomic changes in animal models of depression: a systematic analysis

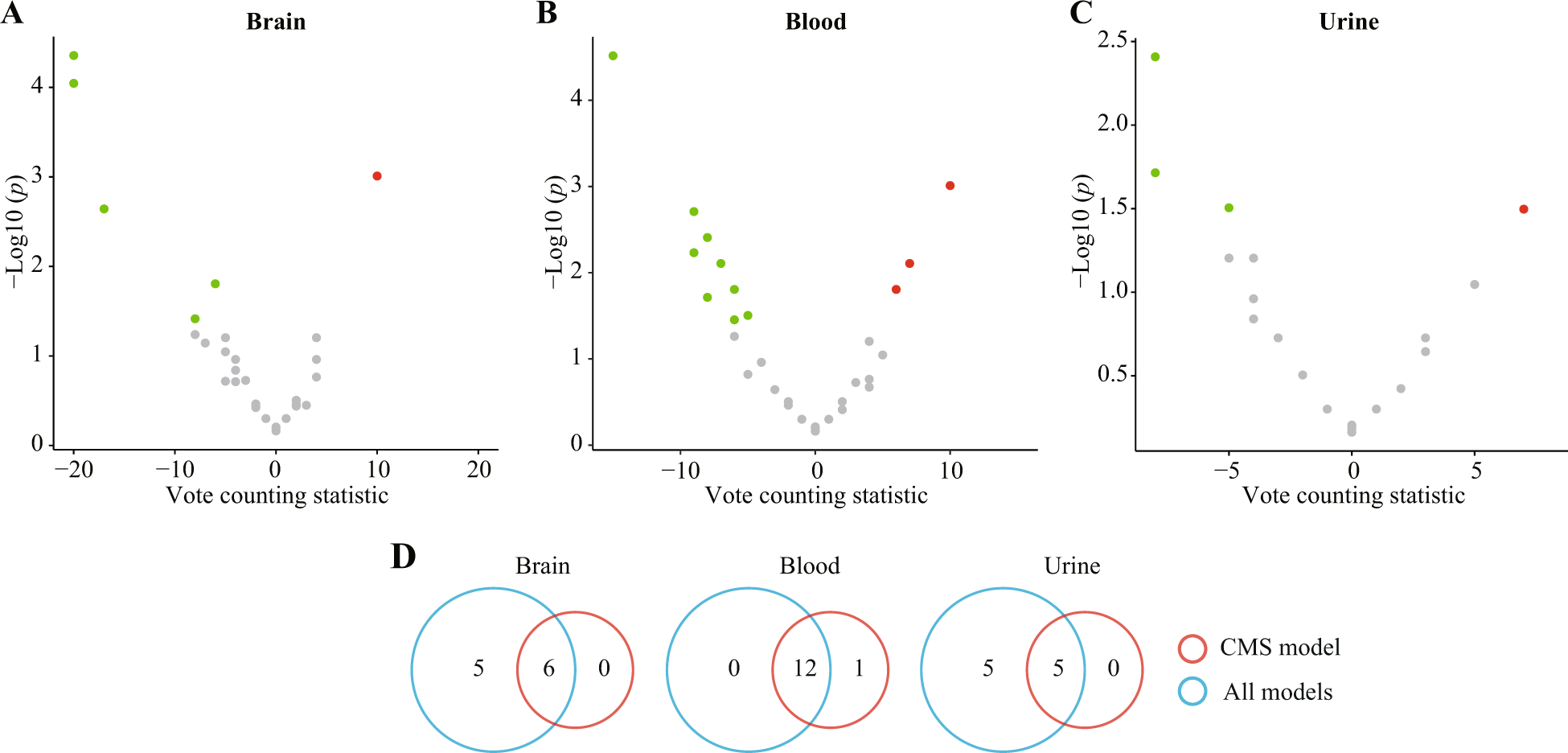

A–C Volcano plots of candidate metabolites in the brain (A), blood (B), and urine (C) of the CMS model. Nodes represent candidate metabolites, the x-axis shows the vote counting statistic, and the y-axis shows the −log10 (p value). Red, green, and gray nodes denote consistently upregulated, downregulated, or unaltered metabolites, respectively. D Venn diagram displaying the shared consistently dysregulated metabolites in all models and the CMS model.
