Fig. 2: Bland–Altman plots comparing manual and MS-GAN segmentations.

From: Rest-activity rhythms and tract specific white matter lesions in older adults at risk for cognitive decline

Fig. 2: Bland–Altman plots comparing manual and MS-GAN segmentations.

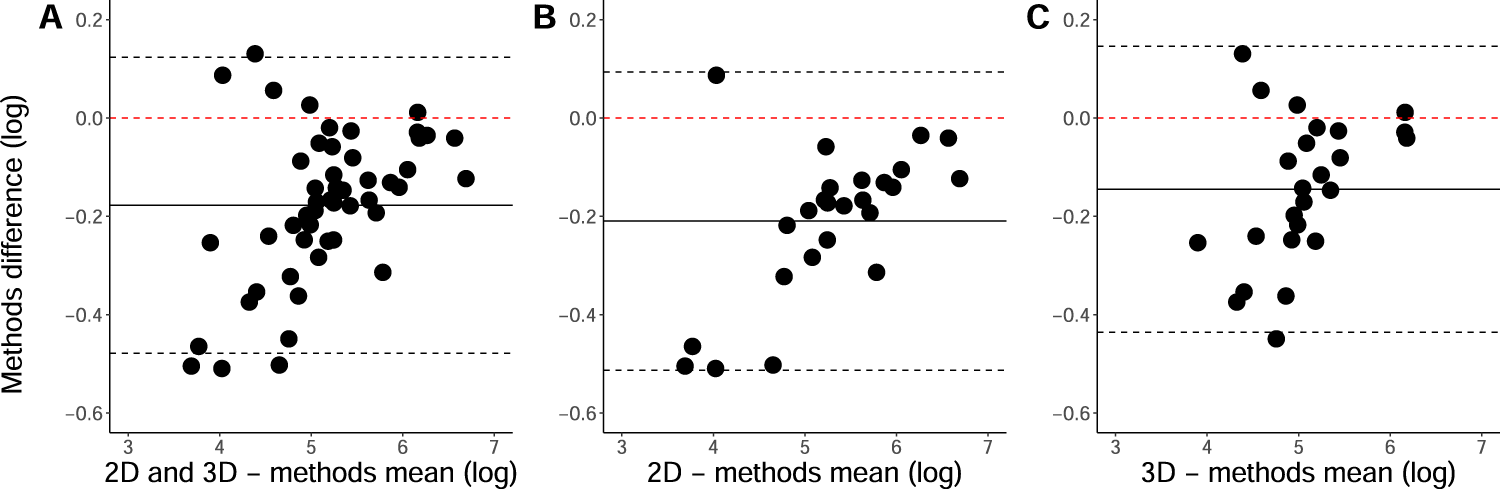

Bland–Altman plots comparing manual WML segmentation with MS-GAN automatic segmentations for A 2D and 3D FLAIR scans together, B 2D FLAIR scans only and C 3D FLAIR scans only. Values are log-transformed lesion volumes (mm3). The solid black line shows the mean of differences between methods, with dashed black lines showing the limits of agreement (±1.96 standard deviations).
