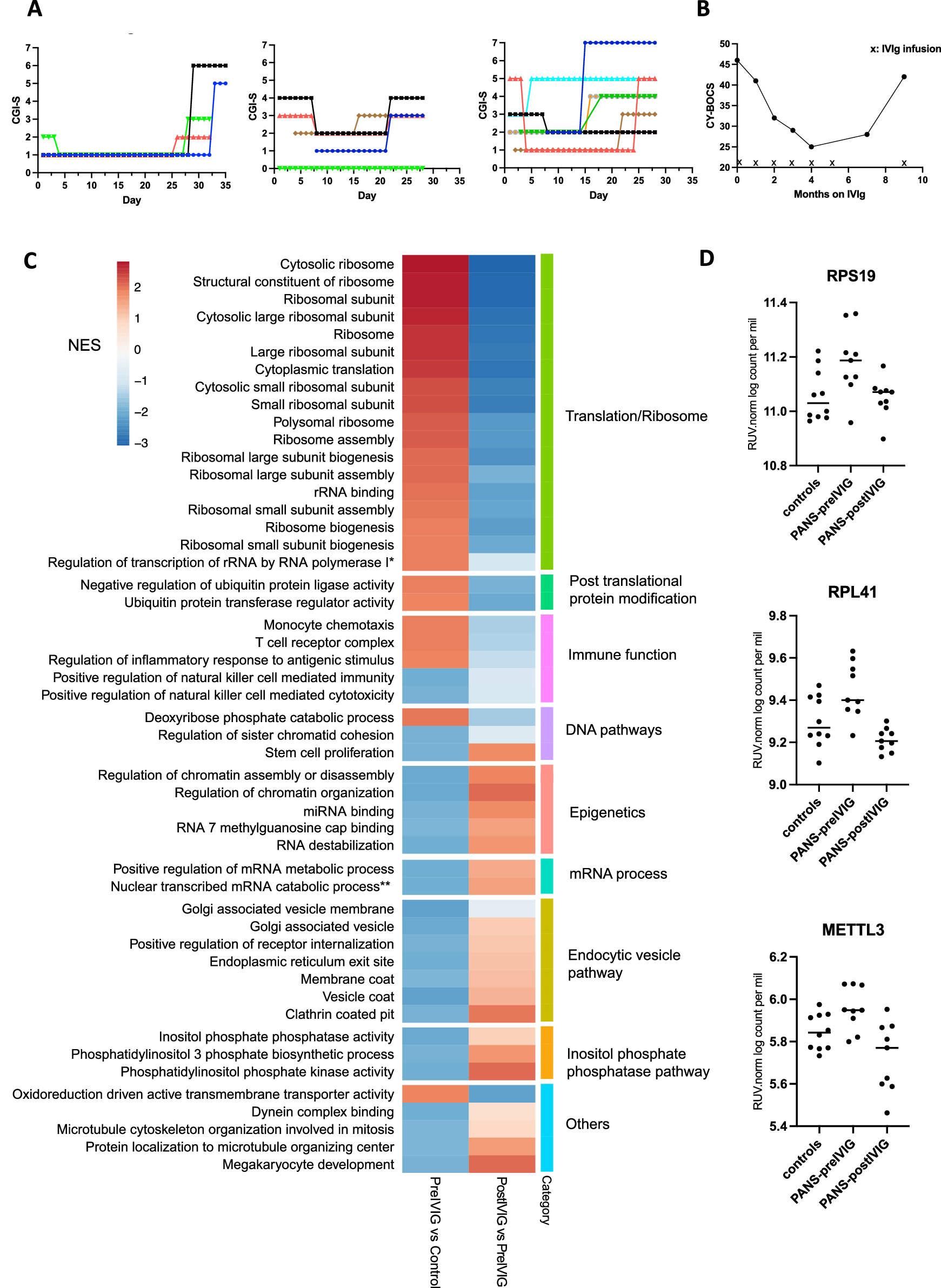

Fig. 6: Bulk blood RNA sequencing of children with Paediatric acute-onset neuropsychiatric syndrome (PANS) before and after intravenous immunoglobulin (IVIg) treatment, compared to controls.

A Clinical response of three children with PANS who received IVIg was prospectively assessed using the Clinical Global Impression Scale- Severity (CGI-S) to document the therapeutic response to IVIg. We charted their daily CGI-S scores over 4–8 four-week cycles (different colour represents a separate 4-week cycle). CGI-S followed a seven-point scale where 1 is normal and 7 is extremely ill. The clinical benefit of IVIg is typically seen 1–7 days after infusion and lasts for 2–3 weeks, and then the clinical benefit wanes. B Clinical response (OCD symptoms) of a child with PANS who received monthly IVIg treatment over 6 months using the Children’s Yale-Brown Obsessive Compulsive Scale (CY-BOCS) score. CY-BOCS score has a total severity score of 0–50 to chart the progress of OCD symptoms. IVIg infusions are marked with X. We observed gradual improvement in OCD symptoms this child over 6 months. However, OCD symptoms were observed to relapse after stopping IVIg, requiring re-commencement of IVIg. C We compared the normalized enrichment scores (NES) for the top 50 Gene Set Enrichment Analysis (GSEA) Gene Ontology (GO) pathways present in: (1) PANS pre IVIg versus control (left column), and (2) PANS post IVIg versus PANS pre IVIg (right column). Pathways upregulated (red) in PANS pre-IVIg versus controls including ribosomal biogenesis, translational, post-translational protein modifications, and immune pathways, were downregulated (blue) post-IVIg treatment. Pathways that were downregulated in the PANS pre-IVIG versus controls including immune pathways, epigenetics, and broad cellular function, showed upregulation after IVIg treatment. *Regulation of transcription of nucleolar large rRNA by RNA polymerase I. **Nuclear transcribed mRNA catabolic process deadenylation-dependent decay. D The expression of representative genes RPS19, RPL41, and METTL3 was upregulated in PANS Pre IVIg compared to controls. After IVIg treatment, the gene expression of these genes was decreased, comparable to levels in controls. The log counts per million post-removal of unwanted variation (RUV) normalization are plotted on the y-axis.
