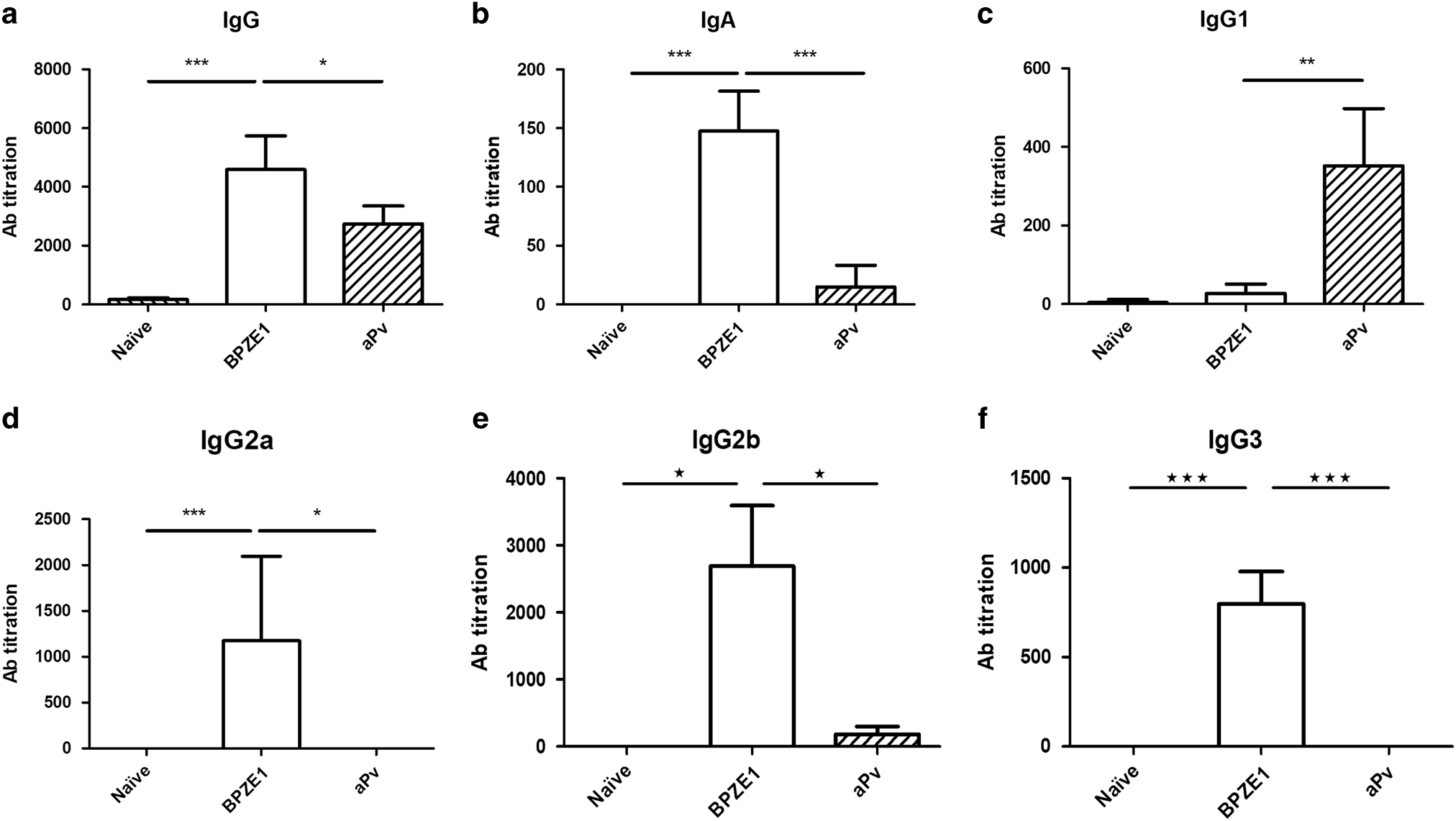

Fig. 2

Serum antibody induction by BPZE1 or aPV vaccination in Balb/c mice. Groups of Balb/c mice were vaccinated once with BPZE1, twice with aPV at a 4 weeks interval, or left unvaccinated (Naïve) as indicated. Eight weeks after the first vaccination, mice were sacrificed and serum was collected. Total IgG (a), IgA (b), IgG1 (c), IgG2a (d), IgG2b (e), and IgG3 (f) titers were measured against BPSM lysate protein extract. N = 5. Bars represent mean values and graph represents data combined from three independent experiments. *p < 0.05; **p < 0.01; ***p < 0.001 by one-way ANOVA and Bonferroni post hoc test
