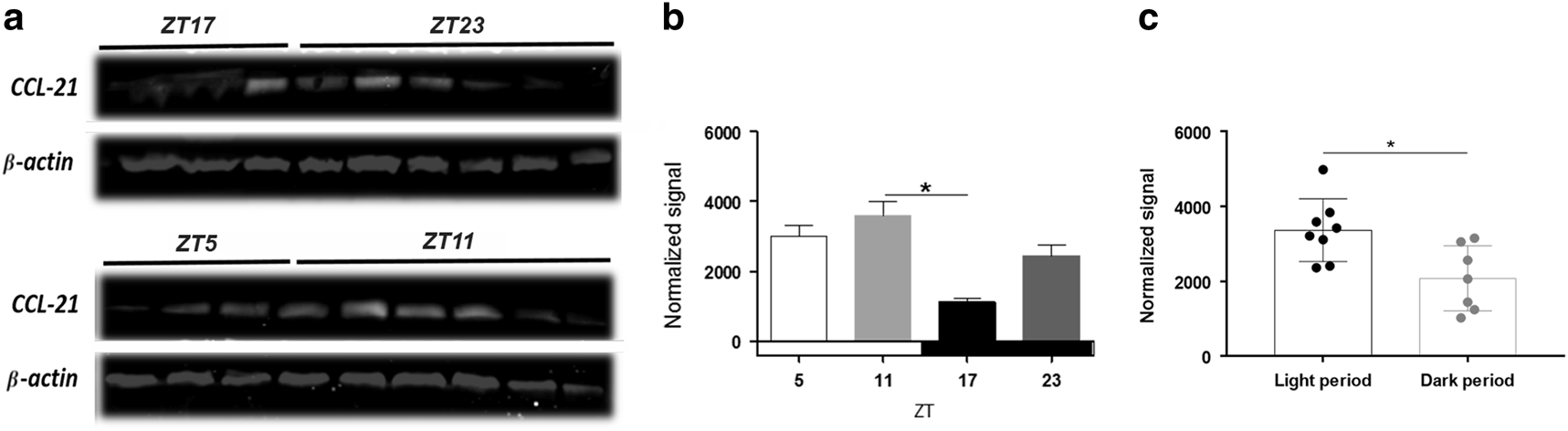

Fig. 2
From: A selective window after the food-intake period favors tolerance induction in mesenteric lymph nodes
CCL-21 expression in MLNs over a 24-h period. Levels of CCL-21 were analyzed in MLN homogenates from WT mice at ZT5, 11, 17, and 23. Representative Western blot (a). Data were normalized with β-actin expression and represented at different ZT in light (b) or dark periods (c). Means ± SEM of n = 3–5/ZT. *p < 0.05
