Fig. 1: ADM expression is decreased in fallopian tubes with salpingitis and TEP.

From: Adrenomedullin insufficiency alters macrophage activities in fallopian tube: a pathophysiologic explanation of tubal ectopic pregnancy

Fig. 1

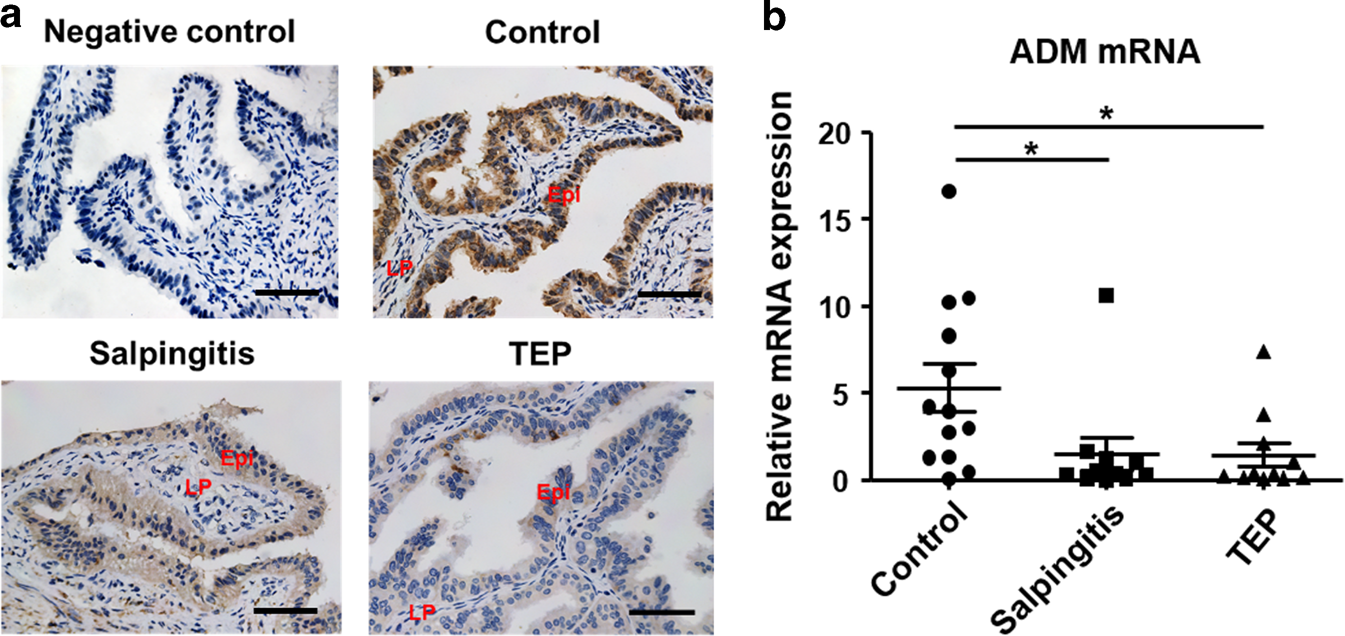

ADM expression is decreased in fallopian tubes with salpingitis and TEP. a Immunohistochemical staining showed ADM expression and localization in fallopian tubes of control, salpingitis and TEP groups. Epi: tubal epithelium, LP: lumina propria. Scale bar = 100 μm; n = 5 for each group. Negative control: use isotype control antibody as the primary antibody. b qPCR was used to measure ADM mRNA levels in tubal mucosa collected from control (n = 13), salpingitis (n = 11) and TEP (n = 11); data are presented as dot-plots with mean ± SEM; t-test; *p < 0.05.
