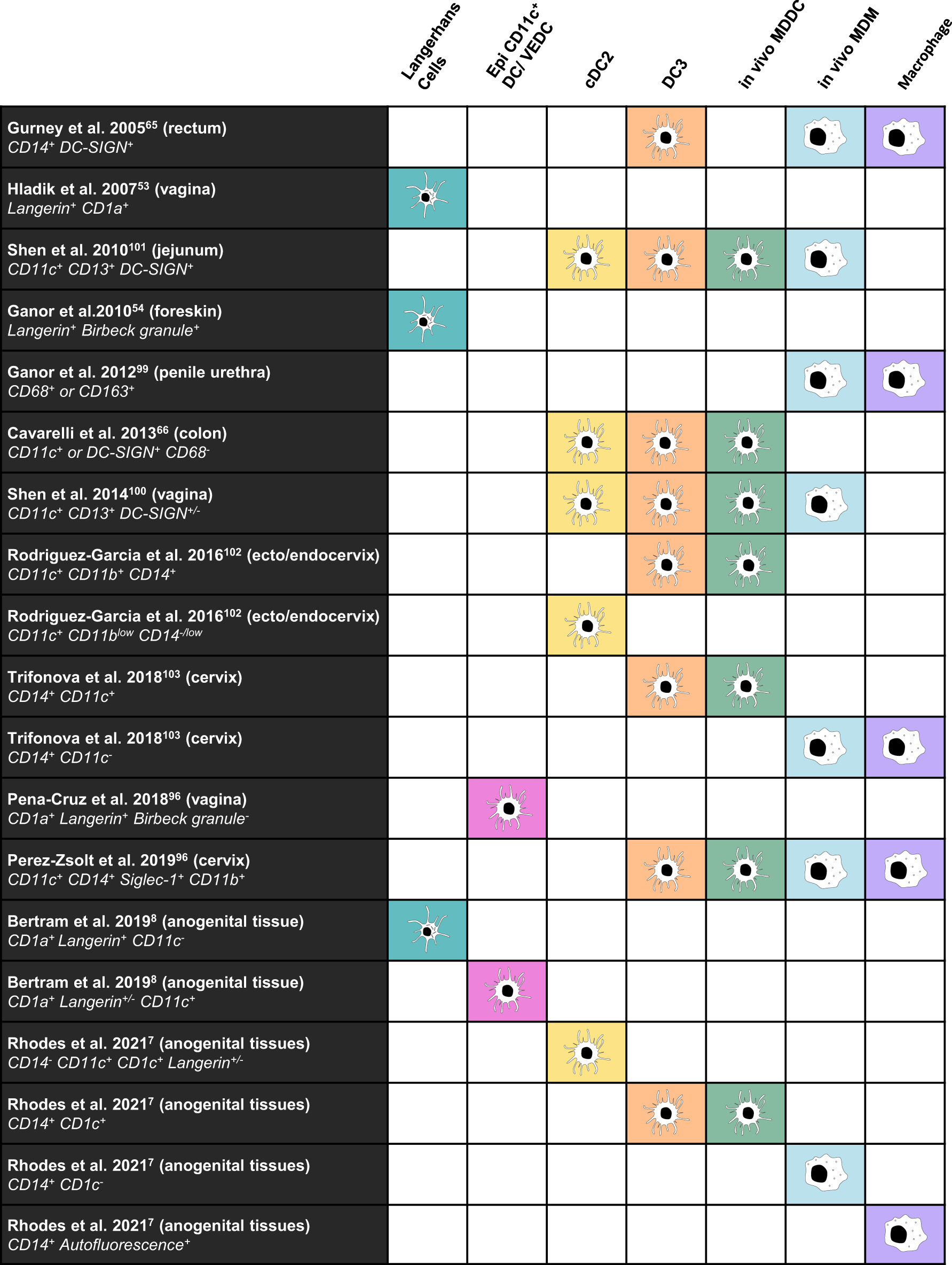

Fig. 1: Current mononuclear phagocyte subsets represented in existing HIV literature.
From: HIV transmitting mononuclear phagocytes; integrating the old and new
A selection of existing literature describing HIV interactions with transmission site mononuclear phagocytes were selected for re-examination. Based on the phenotypic data that was presented (left column lists the publications that were assessed, the tissue studied, and the defining phenotypic characteristics presented by the authors), key HIV transmitting mononuclear phagocytes from each study were categorised into the current mononuclear subsets (the columns on the right). This does not consider the proportional contribution that each subset represents, only whether each described mononuclear phagocyte matches the phenotypic profile of the current subset.
