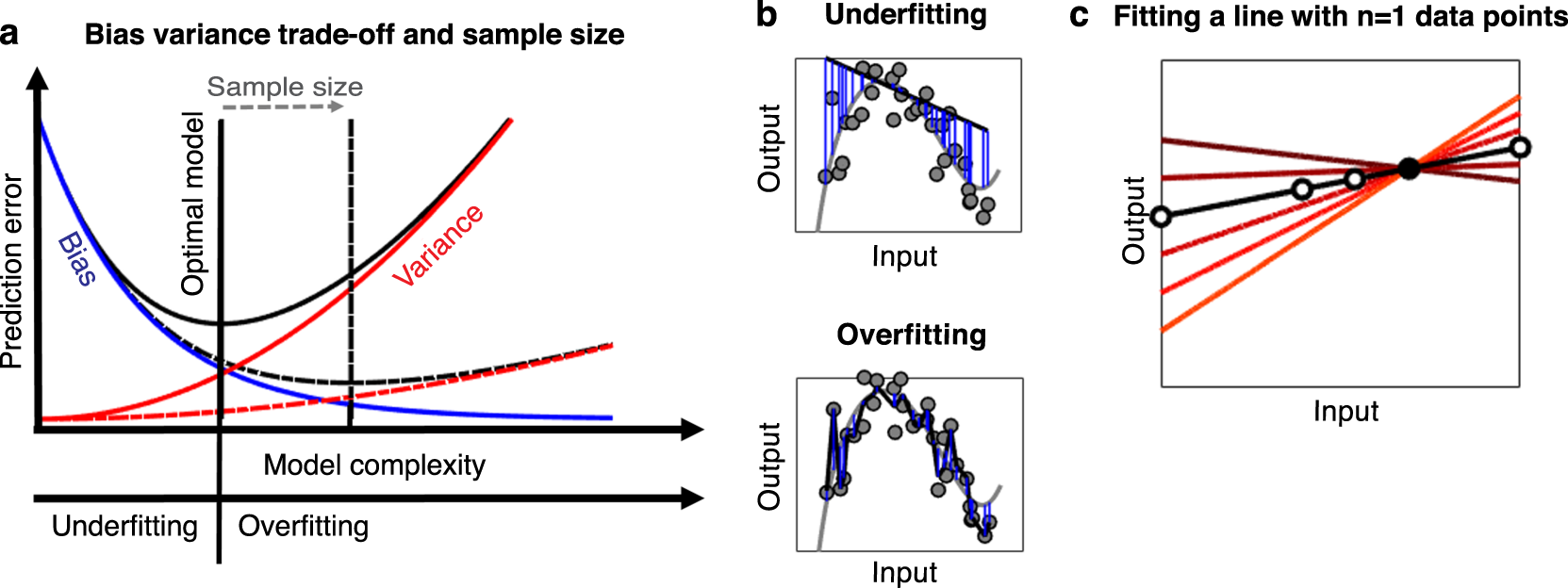

Fig. 4: Model complexity and the bias-variance trade-off.

a As model complexity is increased (x-axis), variance rises and bias declines, that is, lower bias is traded for higher variance. We want to select the (optimal) model which balances these two quantities, achieving minimum prediction error (y-axis, minimum of bias plus variance, black curve). Increasing sample size effectively shifts this minimum to the right (dotted lines), enabling models of higher complexity. b Illustration of underfitting (top) and overfitting (bottom). Both panels depict the same samples (gray dots) drawn with noise from the true function (gray). The low and high complexity linear regression models with polynomial basis expansion of order 1 (top) and 20 (bottom) were fit (thick black lines). Panels depict the model deviation to the true function (blue lines) illustrating model bias. c Overfitting in detail: Here we assume that the true relation between inputs and outputs is perfectly linear as depicted by the black line (with 5 data points on that line illustrated). Assuming we have only observed one data point (black solid circle), we can however fit infinitely many lines (some of them illustrated in color) equally well. In this simple example, increasing the sample size just by one data point (and assuming there is no noise in the data) will allow us to pick out the correct model.
