Fig. 4: Graphs show correlations of change in network metrics with change in clinical symptom severity. | Neuropsychopharmacology

Fig. 4: Graphs show correlations of change in network metrics with change in clinical symptom severity.

From: Changes in the brain structural connectome after a prospective randomized clinical trial of lithium and quetiapine treatment in youth with bipolar disorder

Fig. 4: Graphs show correlations of change in network metrics with change in clinical symptom severity.

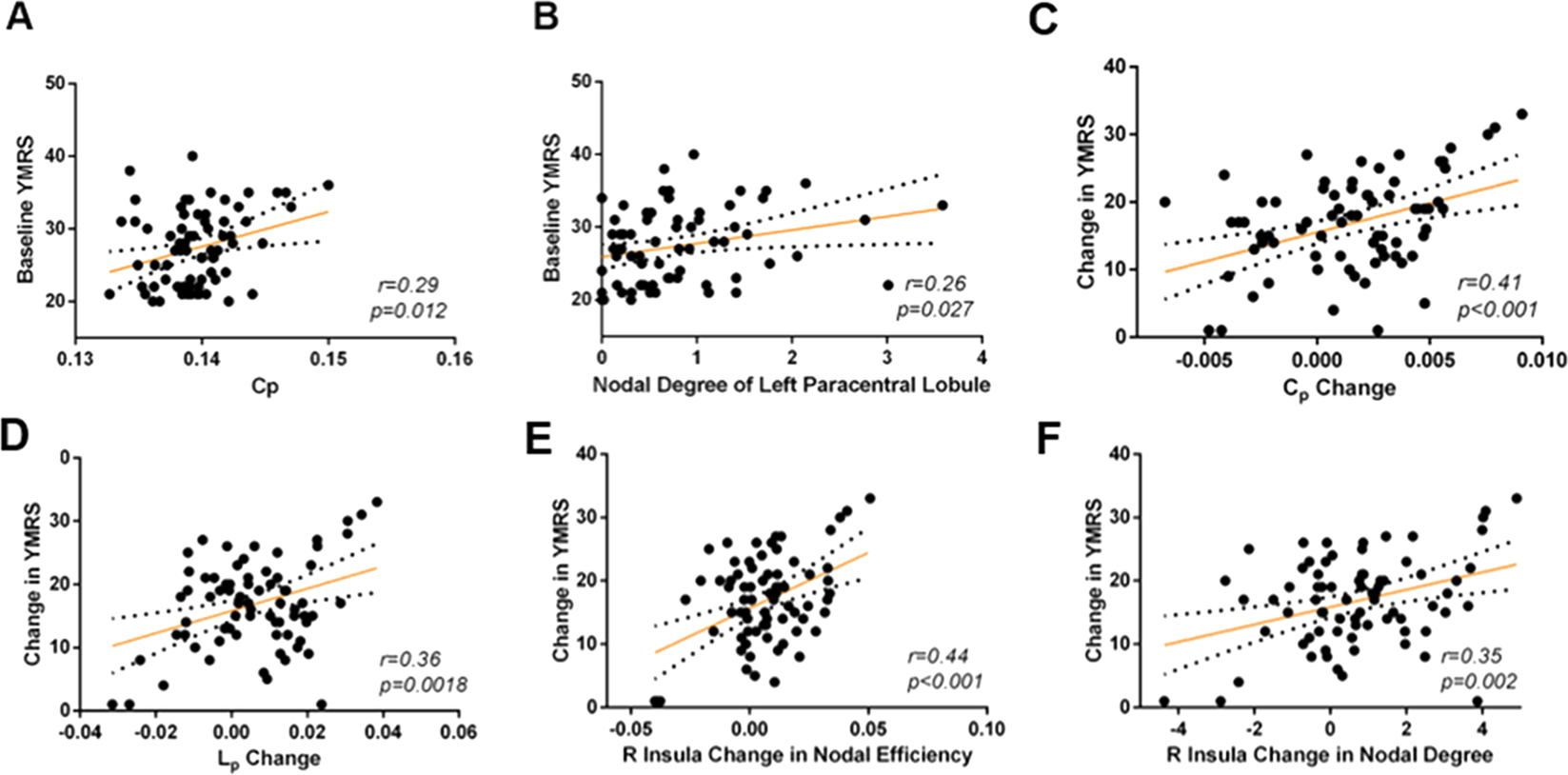

A, B show relations of network metrics to symptom severity at baseline. C–F show relations between change of clinical symptom severity and normalization of altered network metrics at week 6. Abbreviations: SMA = supplementary motor area.
