Fig. 5: Treatment with fluoxetine induces greater transcriptome upregulation while ECS induces a downward transcriptomic shift. | Neuropsychopharmacology

Fig. 5: Treatment with fluoxetine induces greater transcriptome upregulation while ECS induces a downward transcriptomic shift.

From: Effects of electroconvulsive shock on the function, circuitry, and transcriptome of dentate gyrus granule neurons

Fig. 5: Treatment with fluoxetine induces greater transcriptome upregulation while ECS induces a downward transcriptomic shift.

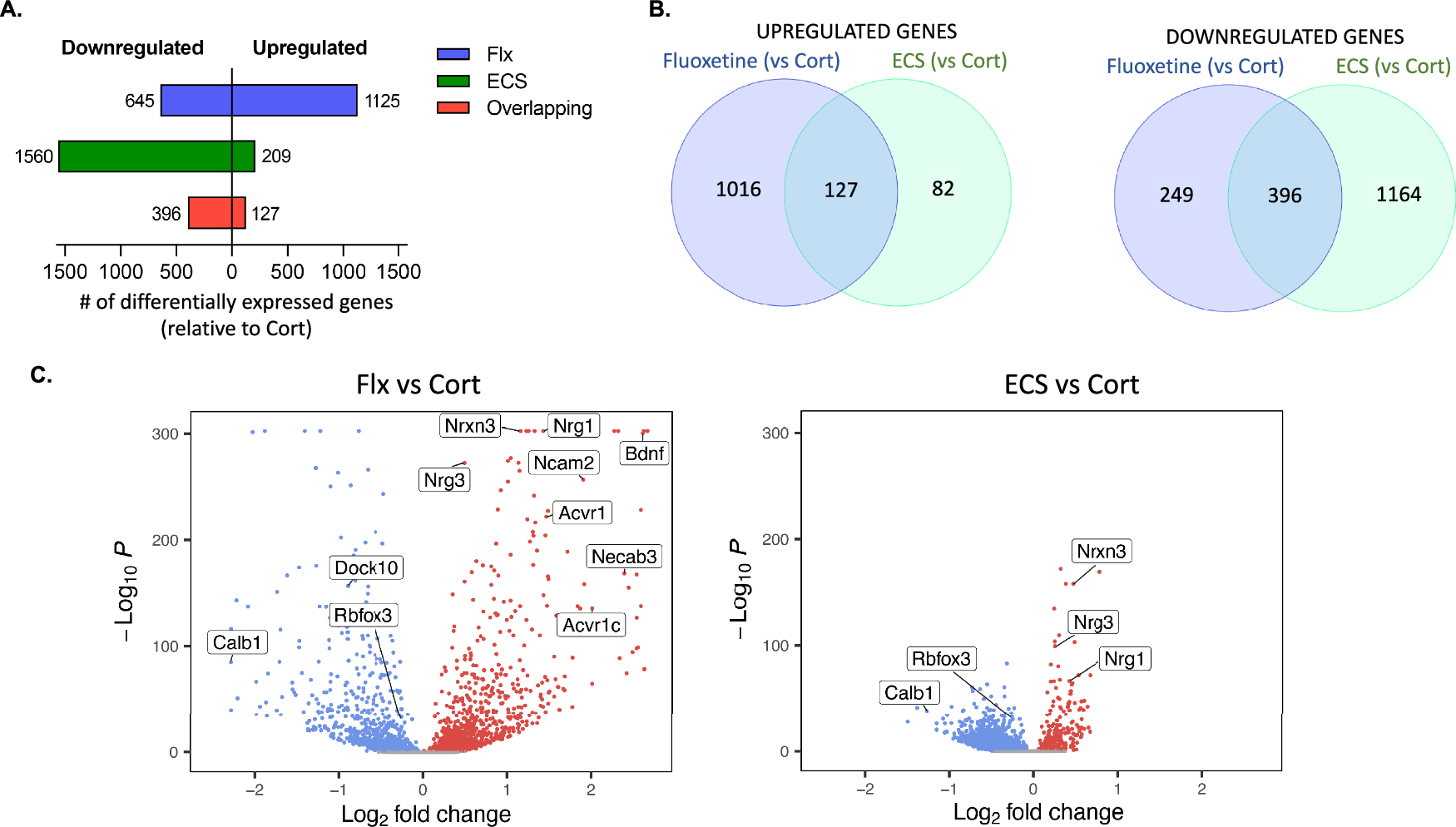

A Representation of the number of differentially expressed genes (DEGs) that are upregulated (right) vs downregulated (left) for Flx and ECS groups, relative to Cort expression. B Venn diagram depicting overlap of upregulated vs downregulated DEGs in Flx and ECS groups, vs Cort. C Volcano plot depicting expression level (-Log of the p value by Log2 fold change) of DEGs for Flx and ECS groups, vs Cort.
