Fig. 7 | Oncogene

Fig. 7

From: The constitutive activity of the virally encoded chemokine receptor US28 accelerates glioblastoma growth

Fig. 7

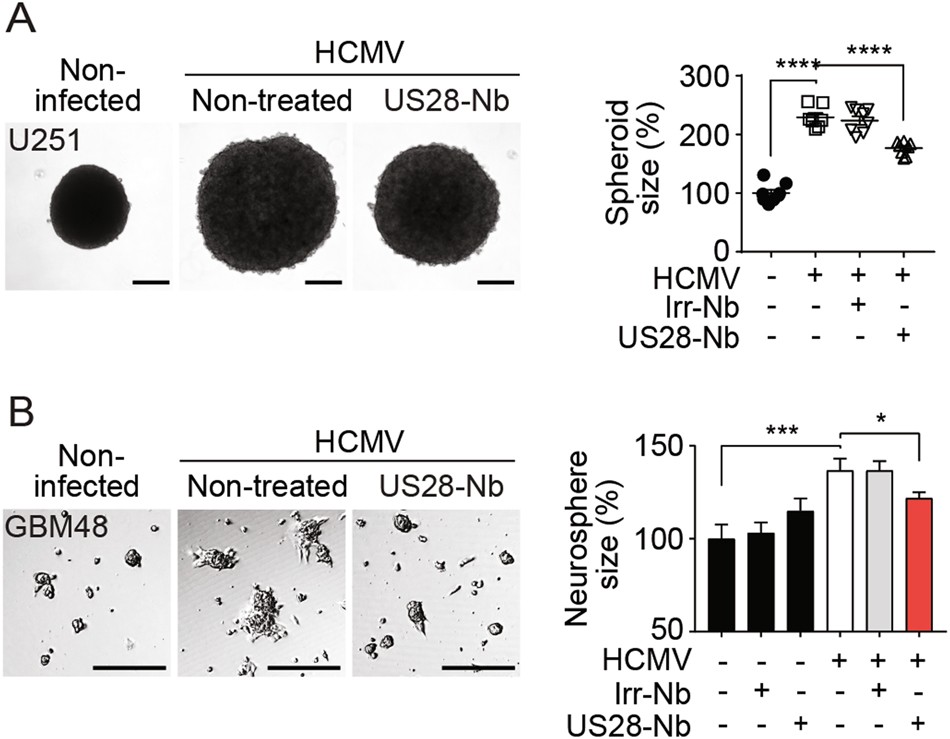

Nanobodies impair HCMV-enhanced GBM spheroid growth. a Spheroid growth of U251 GBM cells infected with HCMV-Merlin upon treatment with Irr-Nb or US28-Nb (n = 8 spheroids per group). b Neurosphere growth of non-infected and HCMV-infected primary GBM48 cells upon treatment with Irr-Nb or US28-Nb (n = > 150 neurospheres per group). All scale bars represent 250 μm. Individual spheroid- or neurosphere sizes were quantified and plotted in percentages with mean ± SEM. ****P < 0.0001, ***P < 0.001, *P < 0.05 (unpaired t test)
