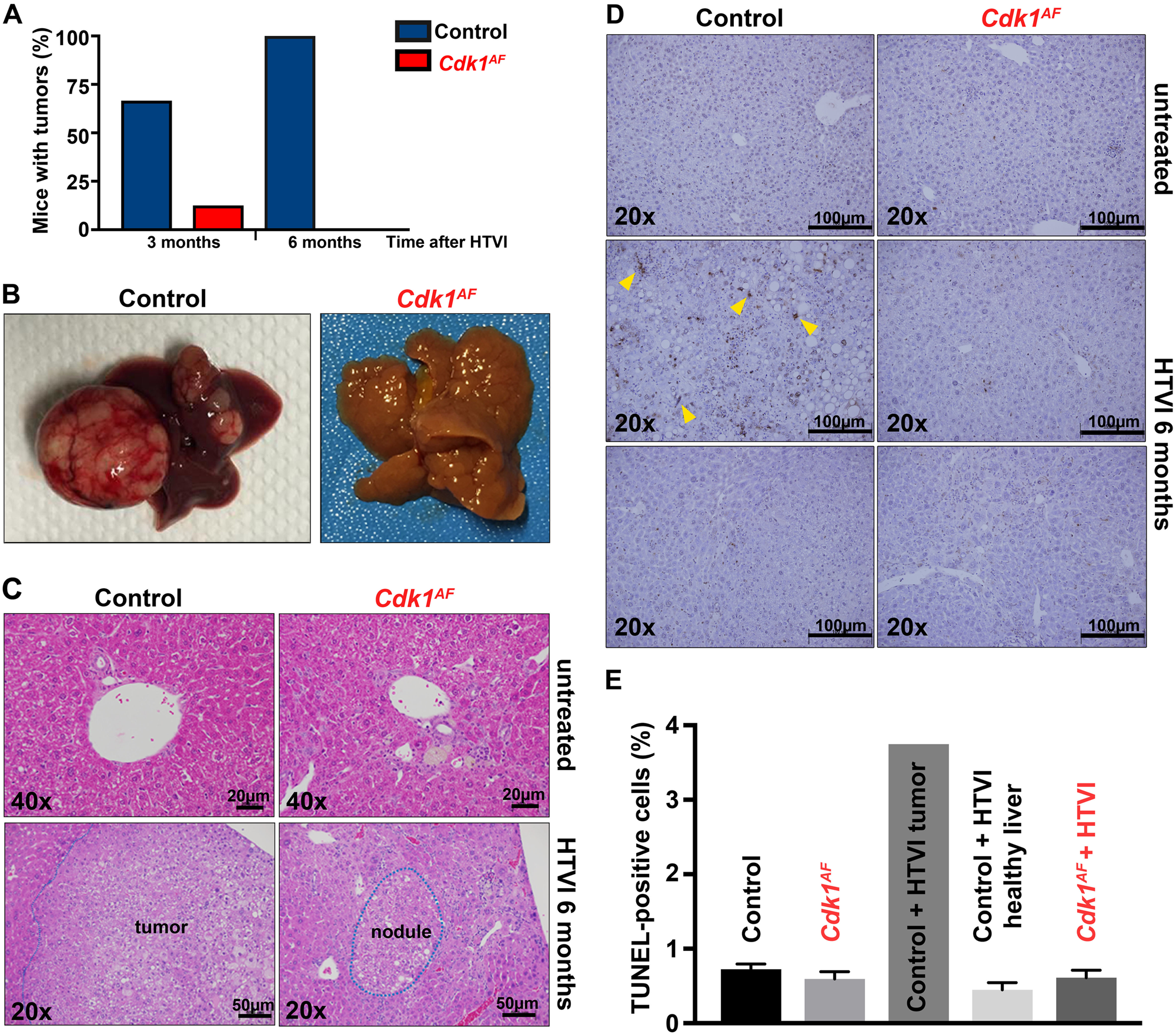

Fig. 7
From: Premature activation of Cdk1 leads to mitotic events in S phase and embryonic lethality
CDK1AF expression inhibits liver tumorigenesis. Eight weeks old Cdk1+/+ (control) and Cdk1+/SAF Alb-CreERT2 (Cdk1+/AF after injection) mice were IP injected with tamoxifen to induce Cdk1+/AF expression in hepatocytes. Two to three weeks later, tamoxifen-treated mice were subjected to hydrodynamic tail vein injection (HTVI) with tumorigenic mix of activated Ras and shRNA against p53 to initiate liver tumorigenesis. a Quantitative analysis of tumor formation 3 (control n = 6, Cdk1+/AF n = 8) and 6 months (control n = 4, Cdk1+/AF n = 4) after HTVI are presented. b Six months after HTVI, mice (four animals per experimental group) were sacrificed and livers/liver tumors were harvested. c Hematoxylin and eosin (H&E) staining of liver sections from Cdk1+/+ and Cdk1+/AF mice. d TUNEL assay representative images from untreated and subjected to HTVI control and Cdk1+/AF mice (two animals per experimental group). Yellow arrows indicate apoptotic cells. e Quantitative analysis of TUNEL assay presented in panel (d)
