From: Deep multi-region whole-genome sequencing reveals heterogeneity and gene-by-environment interactions in treatment-naive, metastatic lung cancer

Fig. 7

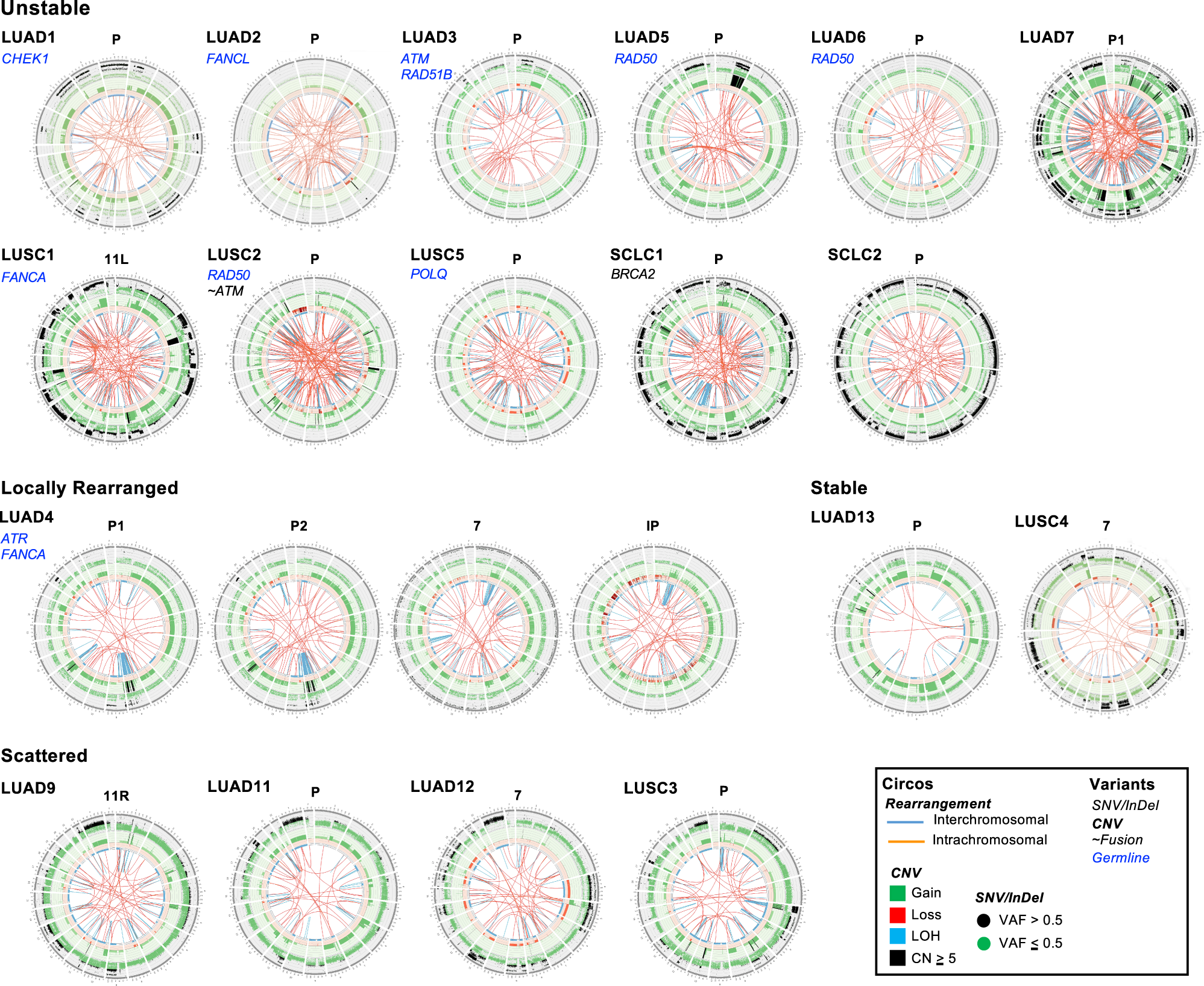

Circos plots from samples analyzed by multi-region and single-region WGS with patterns of structural variants consistent with unstable, locally rearranged, scatted and stable genomic signatures. P primary tumor; metastases are indicated by lymph node station except for Pl (pleura) and IP (intrapulmonary). LUAD lung adenocarcinoma, LUSC lung squamous cell carcinoma, SCLC small cell lung cancer
