Fig. 3: Loss of Mastl affects mitotic prophase and DNA repair processes.
From: The Greatwall kinase safeguards the genome integrity by affecting the kinome activity in mitosis

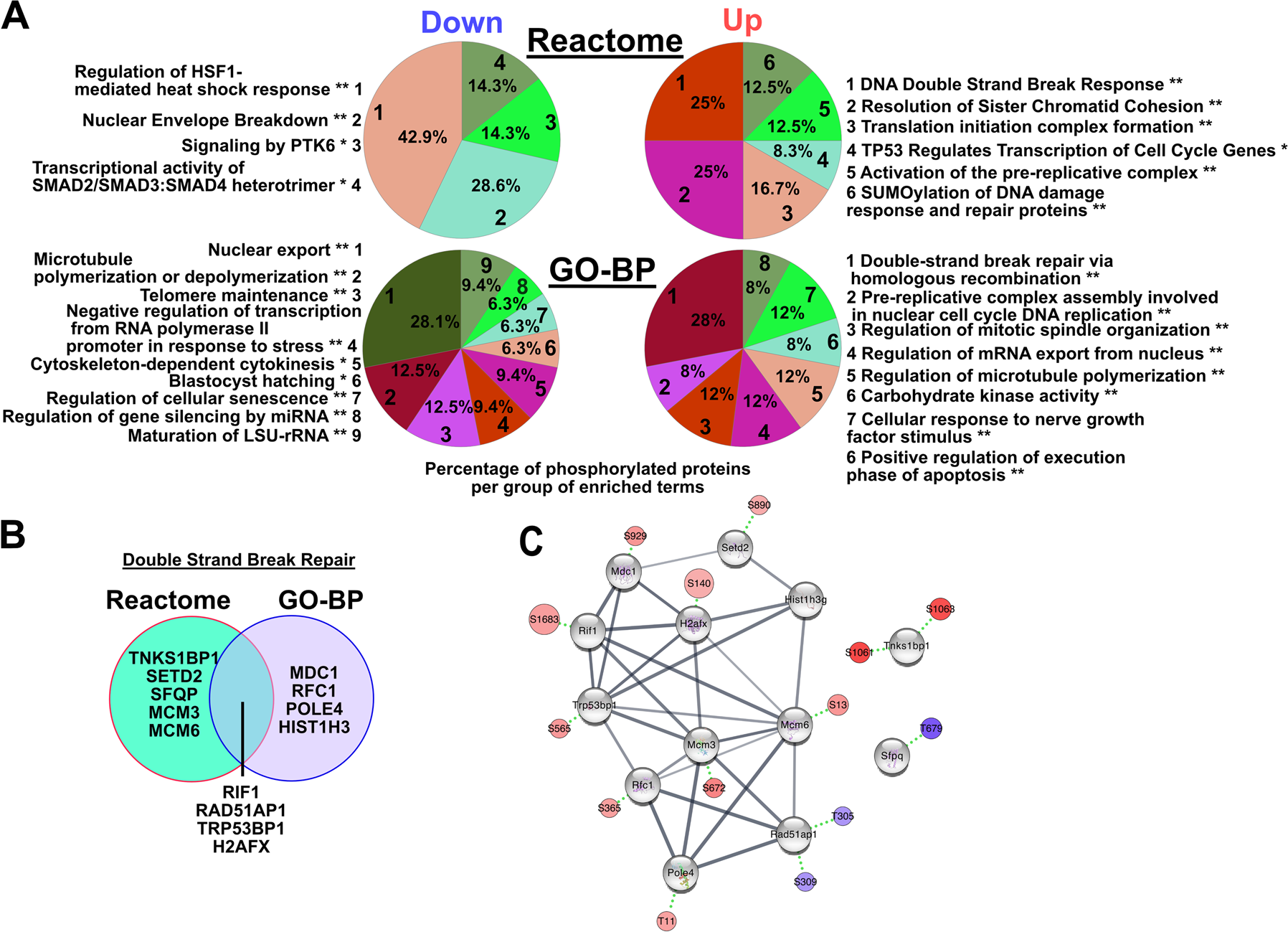

a Pie chart of the percentage of phosphorylated proteins associated to grouping terms from the Reactome or the biological processes from the gene ontologies (GO_BP) on up- and downregulated phosphopeptides. **P ≤ 0.001, *P ≤ 0.01. b Venn diagram of genes annotated to DNA double-strand break repair term in the Reactome and GO-BP database. c Subset of protein–protein interactions shown in File S1 for the proteins annotated to DNA double-strand break repair with regulated phosphorylation. Red represents upregulation and blue downregulation.
