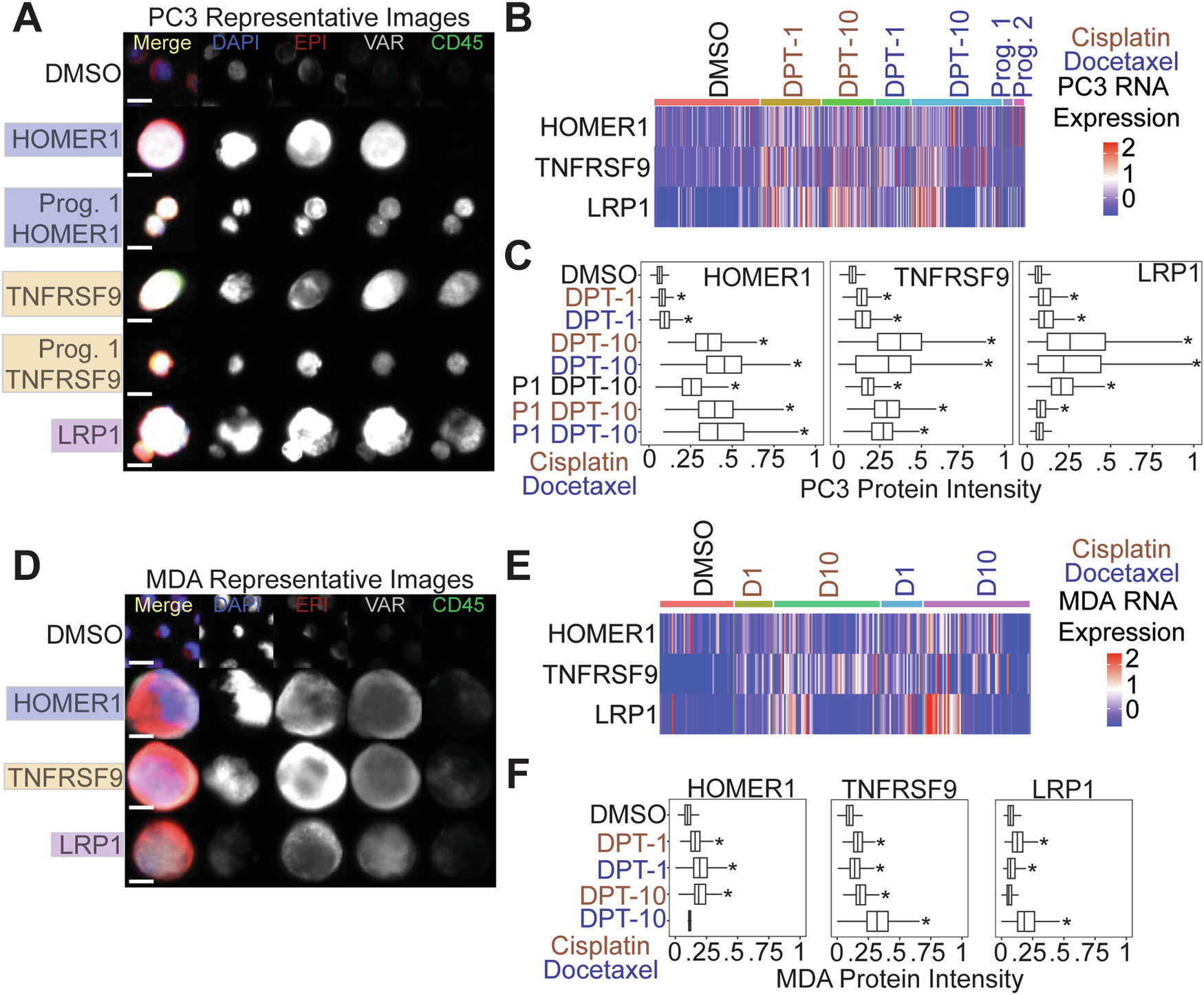

Fig. 5: HOMER1, TNFRSF9, and LRP1 are putative markers of chemotherapy resistance.

A Representative PC3 images of putative marker genes stained in the variable (VAR) channel. DMSO control cells were stained with HOMER1 in the VAR channel. B RNA expression for each marker for all PC3 conditions. C Protein immunofluorescence quantification for PC3 cells stained with tested markers. D Representative MDA-MB-231 (MDA) images of putative marker genes stained in the VAR channel. DMSO control cells were stained with HOMER1. E RNA expression for each marker for all MDA-MB-231 cells. F Immunofluorescence quantification for MDA-MB-231 cells stained with tested markers. Wilcoxon rank sum test used in C and F; significance p < 0.01).
