Fig. 6: The expression of TRIM29 affects the turnover of focal adhesion sites during cell migration.

From: TRIM29 promotes bladder cancer invasion by regulating the intermediate filament network and focal adhesion

Fig. 6

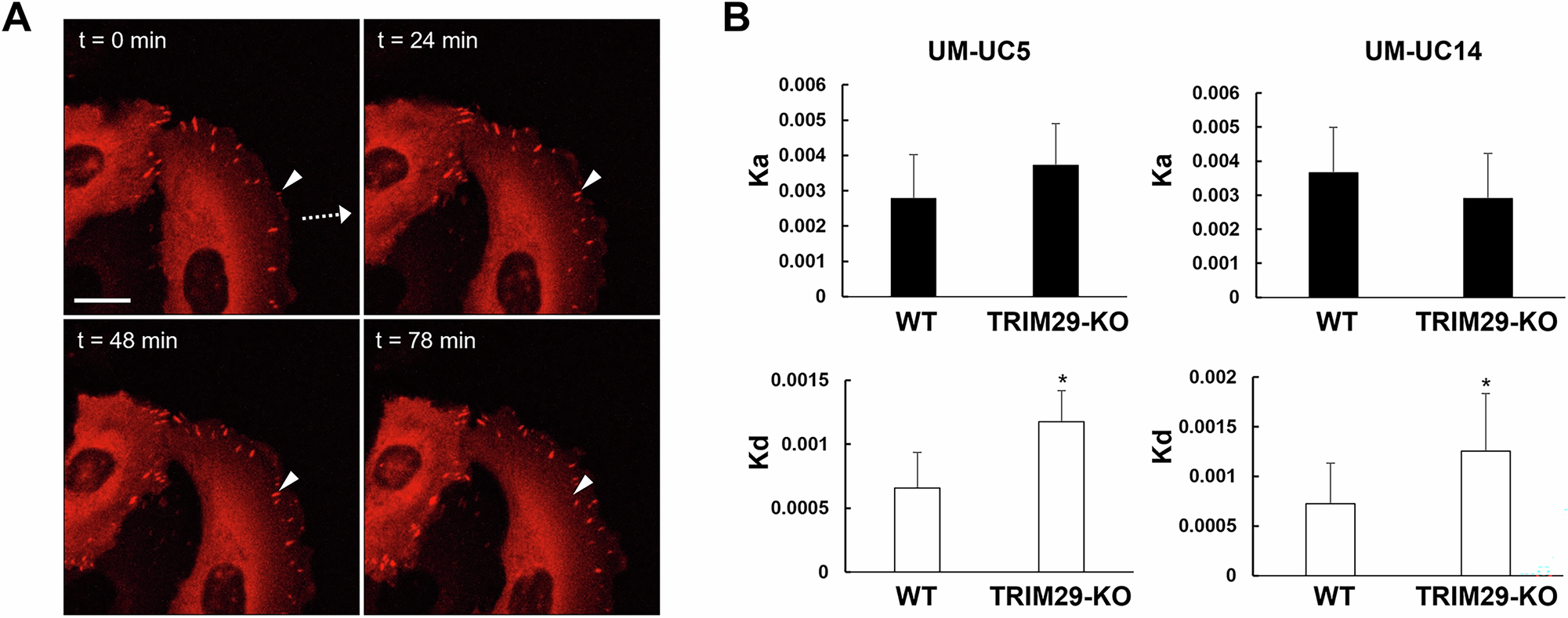

A Timelapse images of UM-UC5 cells expressing mCherry-Paxillin during cell migration. Arrowhead indicates monitored focal adhesion site. Dashed arrow shows the direction of cell movement. Scale bar = 20 µm. B TRIM29 KO had no effect on the rate of assembly (Ka) but increased the rate of disassembly (Kd) of focal adhesion sites in UM-UC5 and UM-UC14 bladder cancer cells (UM-UC5, n = 21; UM-UC14, n = 24). Data represent the mean + STD. *p < 0.05 for t-test.
