Fig. 2: AR domain structure. | Oncogene

Fig. 2: AR domain structure.

From: Evolving roles for the androgen receptor and its protein interactome in castration-resistant prostate cancer

Fig. 2

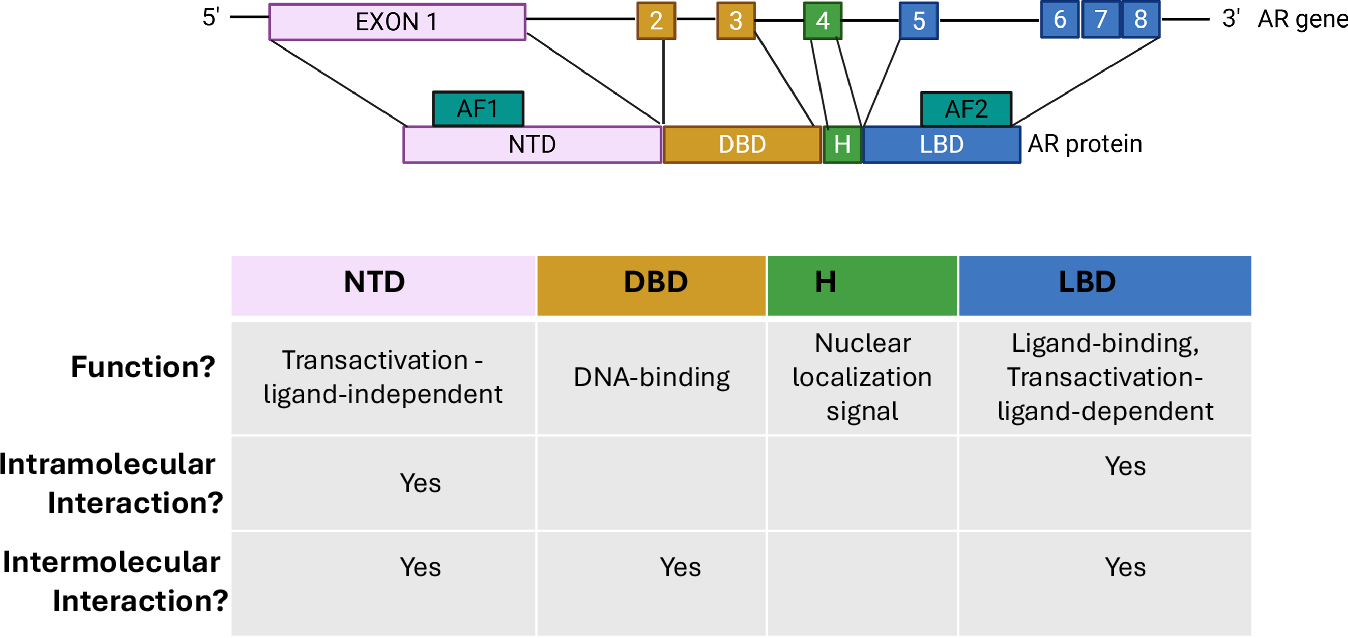

Top panel: AR domain structure. The scheme shows how the exon organization of the AR gene is translated into AR protein domains. AF, activation function; NTD, N-terminal domain; DBD, DNA-binding domain; H, hinge; LBD, ligand-binding domains. Bottom panel: functions that have been attributed the AR protein domains. The figure was generated using Biorender.
