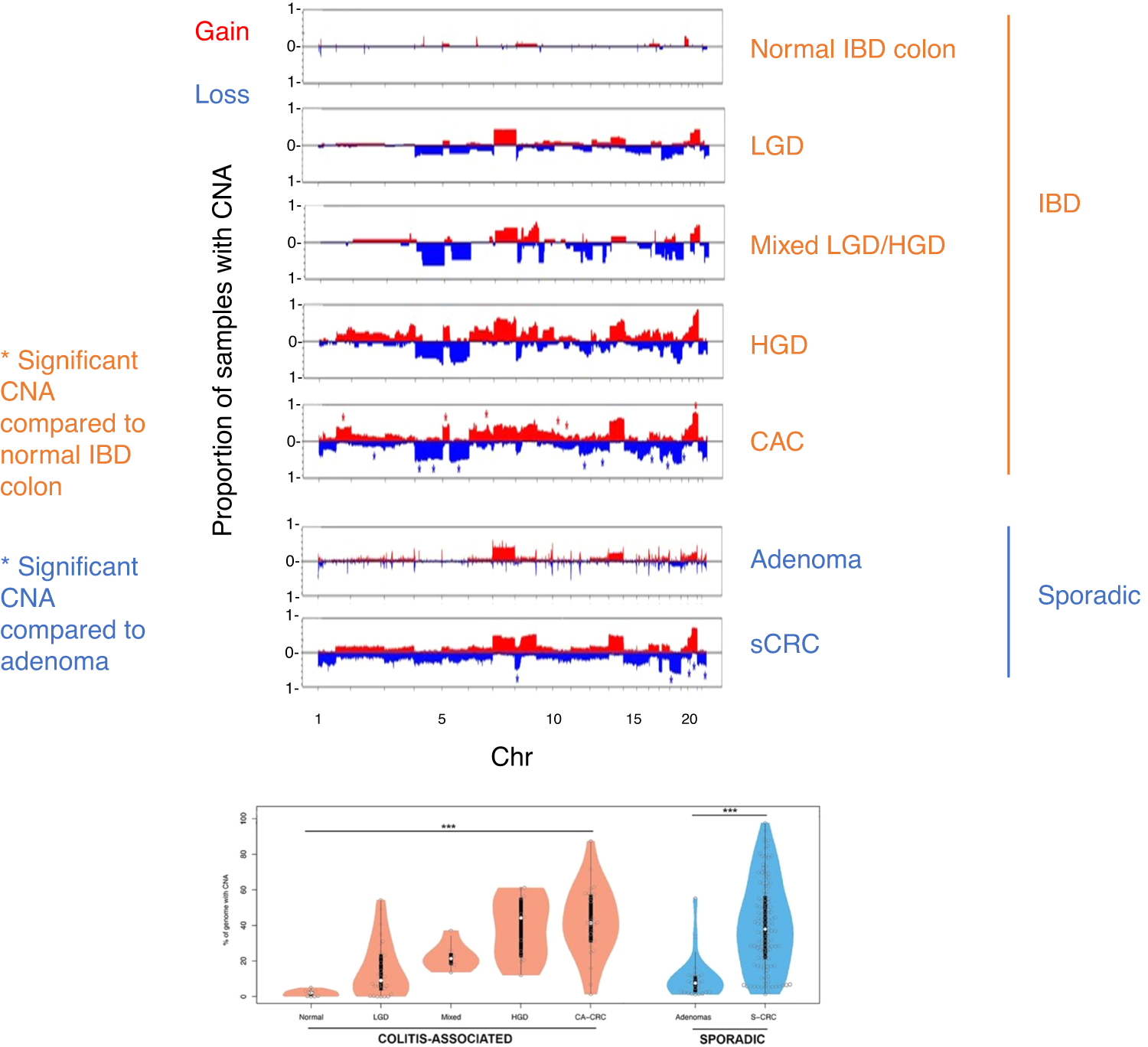

Fig. 2: Aneuploidy is an early finding in colitis-associated dysplasia.
From: Molecular mechanisms in colitis-associated colorectal cancer
A visualization of genome-wide copy number alterations in normal IBD colon, low-grade dysplasia IBD colon (LGD), mixed-grade IBD colon (LGD/HGD), high-grade dysplasia IBD colon (HGD), and colitis-associated carcinoma (CAC). Sporadic CRC tumors used for comparison are microsatellite stable. Blue or red bars indicate statistically significant arm losses or gains, respectively. Figure reproduced from Baker et al., 2019, reproduced under an open-access Creative Commons CC By 4.0 license. For more details, please refer to the original study.
