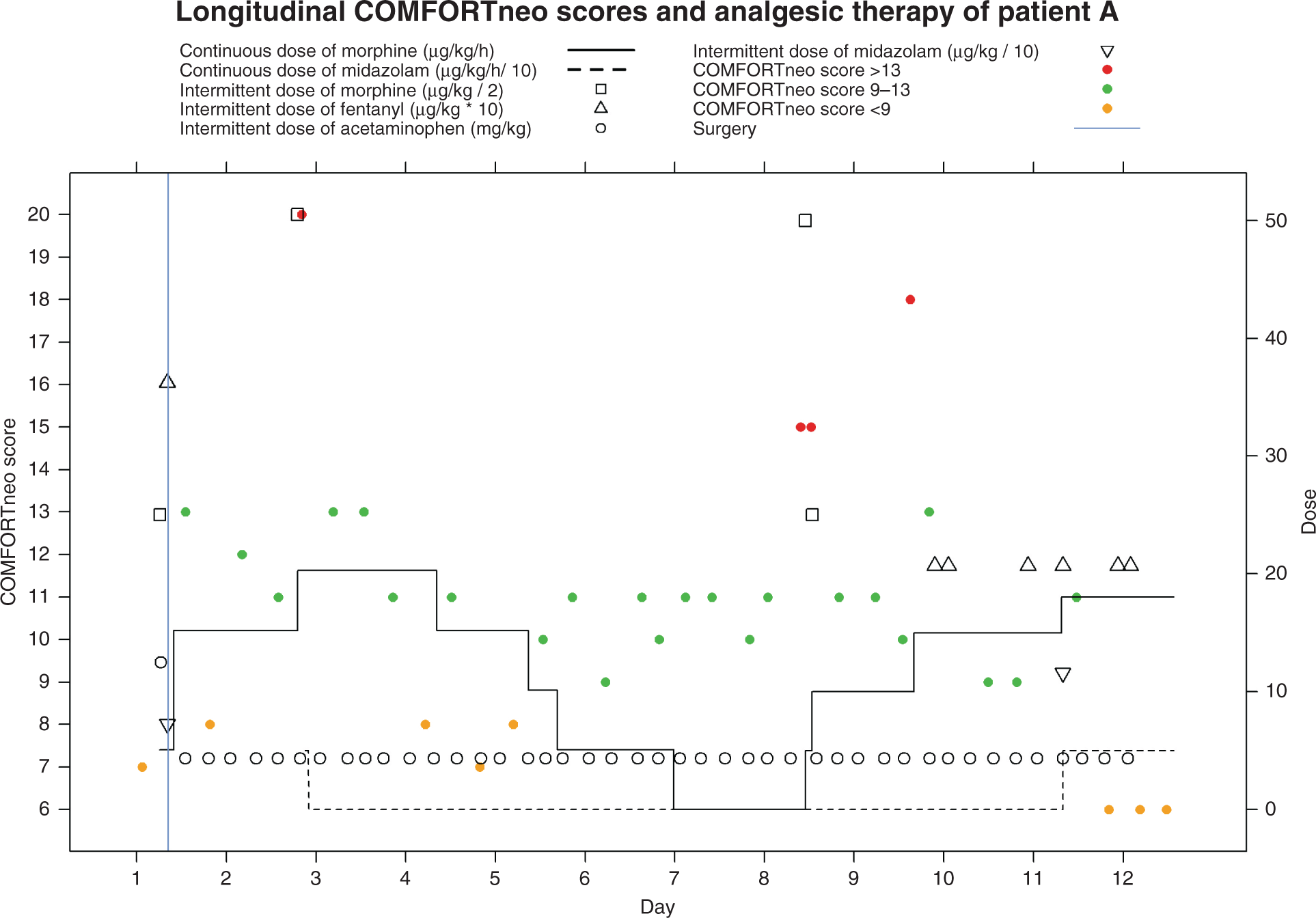

Fig. 4: Overview of the longitudinal evolution of COMFORTneo scores and continuous and intermittent doses of analgesics of patient A.
From: Pain management for necrotizing enterocolitis: getting the balance right
The COMFORTneo score is shown on the left y-axis and the dose is shown on the right x axis. The colored symbols represent the COMFORTneo scores, with red symbols indicating high scores, green symbols indicating acceptable scores, and orange symbols indicating low scores. The black lines indicate continuously administered analgosedatives and the different black symbols indicate intermittently administered analgosedatives. Patient A exhibits persistent high scores, persistent low scores, and recurrent high scores.
