Fig. 1: The importance of mean airway pressure (PAW) during HFOV with volume guarantee (VG). | Pediatric Research

Fig. 1: The importance of mean airway pressure (PAW) during HFOV with volume guarantee (VG).

From: Are we ready for volume targeting during high-frequency oscillatory ventilation in neonates?

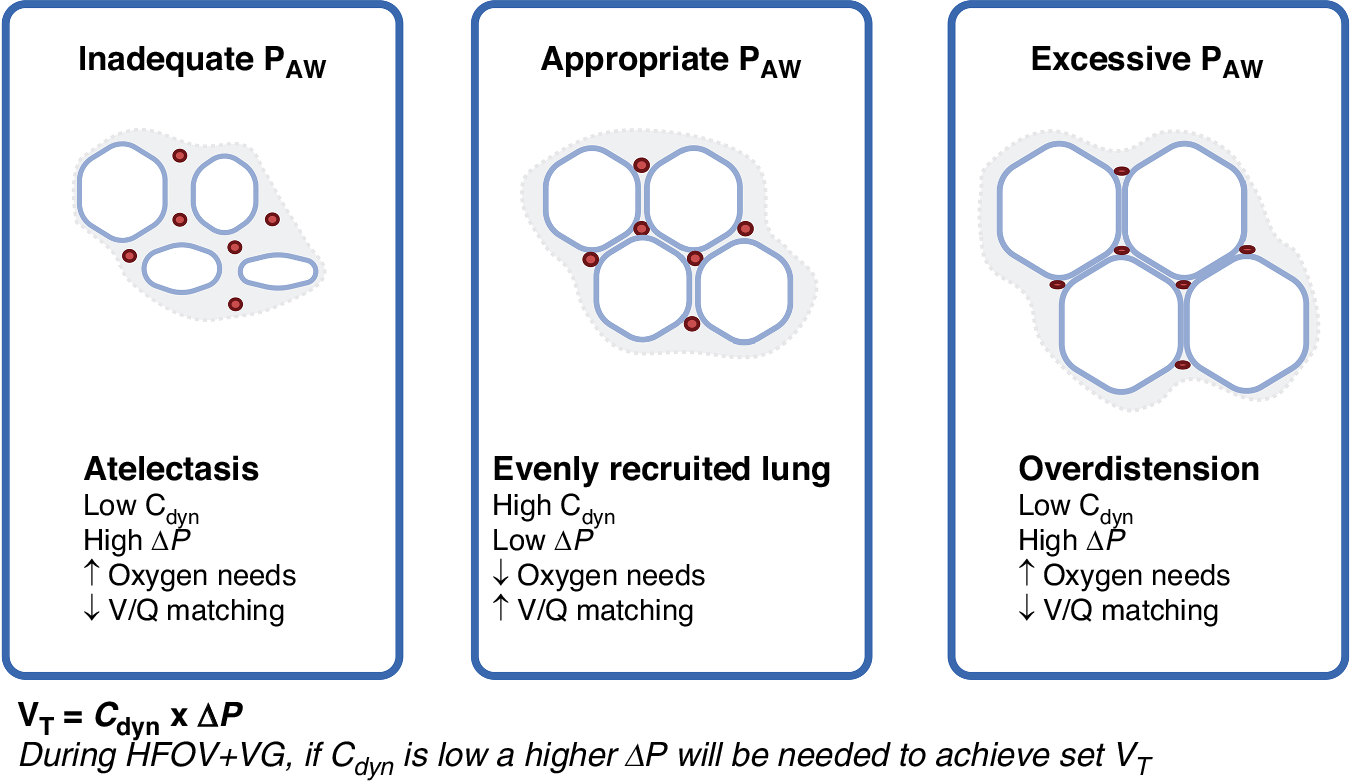

Fig. 1

During HFOV, lung volume state is determined by PAW, which in turn influences lung compliance (Cdyn), oxygenation and perfusion. Even if the set VT is correct, inappropriate PAW will result in unnecessarily high ΔP and uneven delivery of VT during HFOV + VG. Tingay, D. (2025) https://BioRender.com/d56r333.
