Fig. 6: CRPS Trajectories Stratified by Outcome.

From: Cardiorespiratory phase synchronization maturational trajectory: biomarker of autonomic nervous system development in preterm infants

Fig. 6

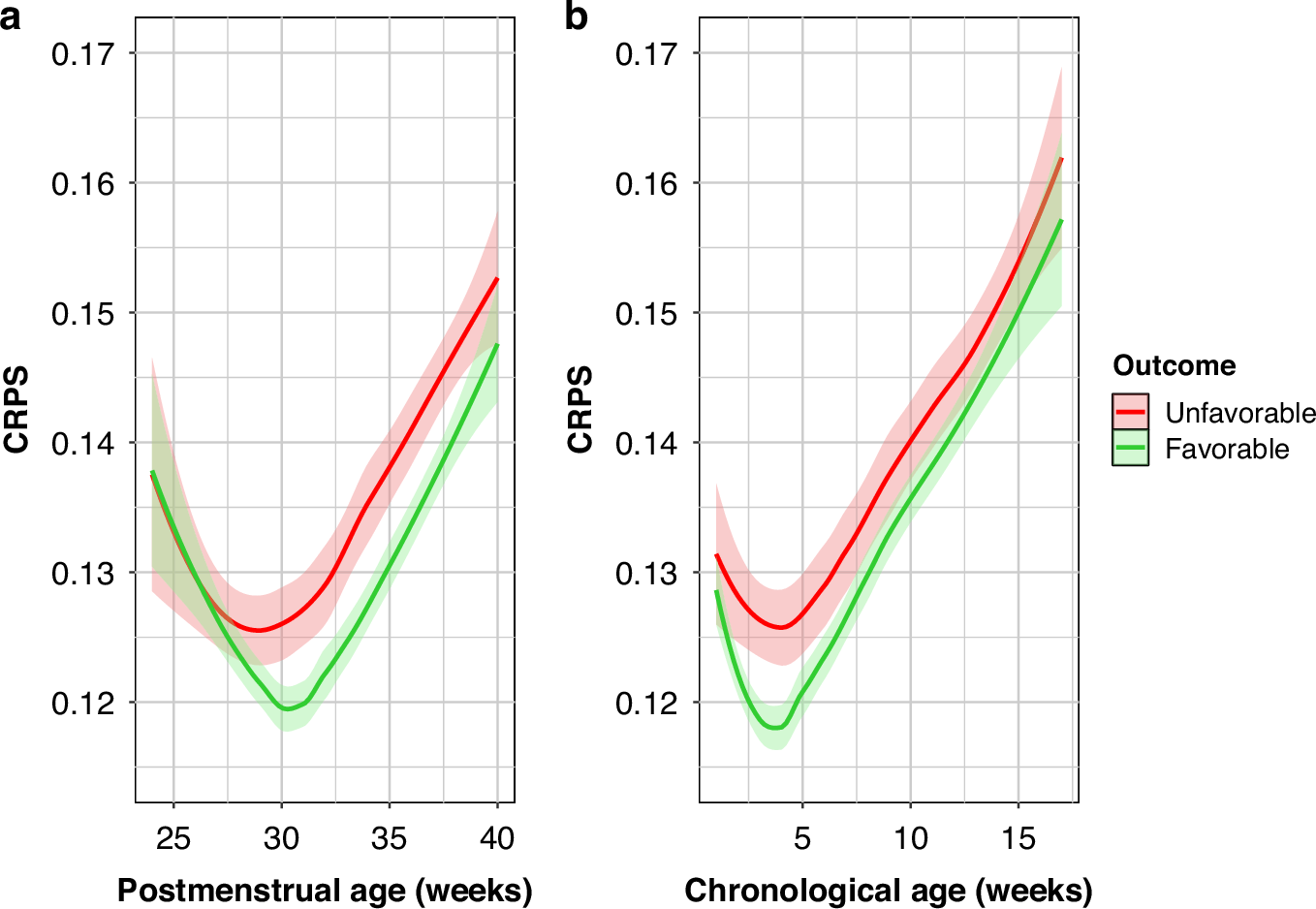

Loess-smoothed trends in CRPS by postmenstrual age (a) and chronological age (b) as a function of Favorable (n = 107) vs Unfavorable (n = 68) outcome groups. Accompanying linear mixed models show a significant main effect of outcome group as well as interactions with the postmenstrual and chronological age trends. These effects show significantly lower CRPS in the Favorable outcomes group earlier, which disappears with increasing post menstrual age and chronological age.
