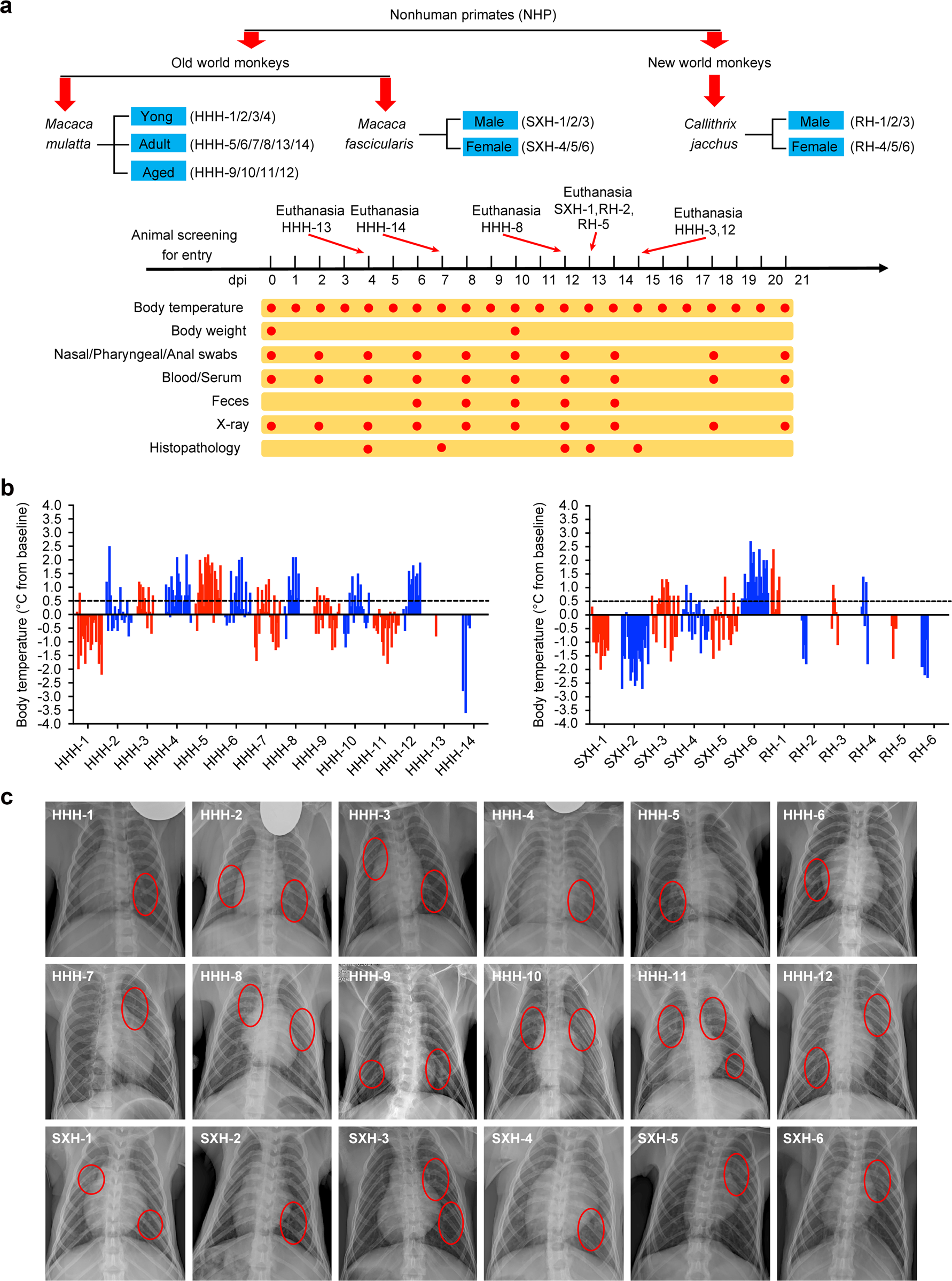

Fig. 1

Schematic of the study design and clinical signs of SARS-CoV-2 infection in monkeys. a Three species of monkeys from two families of nonhuman primates (26 animals in total) were selected for this comparative study to assess their ability to model COVID-19. Age and sex were considered for grouping of the monkeys. After the collection of baseline samples on day 0, all animals were inoculated with SARS-CoV-2, as stated in the “Materials and methods” section. Clinical signs, viral shedding and replication, and host responses to SARS-CoV-2 were recorded at the indicated time points and evaluated. b The body temperature of each monkey was monitored and recorded every two days after SARS-CoV-2 inoculation. The body temperature changes were calculated by subtracting the baseline from each body temperature. The figure was prepared by the Graphpad Prism software. c Chest radiographs of SARS-CoV-2-challenged monkeys were taken every two days with a mobile digital medical X-ray photography system. Radiographs were independently graded by two thoracic radiologists in a double-blind manner via a four-pattern approach, as described in the “Materials and methods” section. Abnormal pulmonary sites are marked with red ovals
