Fig. 2 | Signal Transduction and Targeted Therapy

Fig. 2

From: Small molecules in targeted cancer therapy: advances, challenges, and future perspectives

Fig. 2

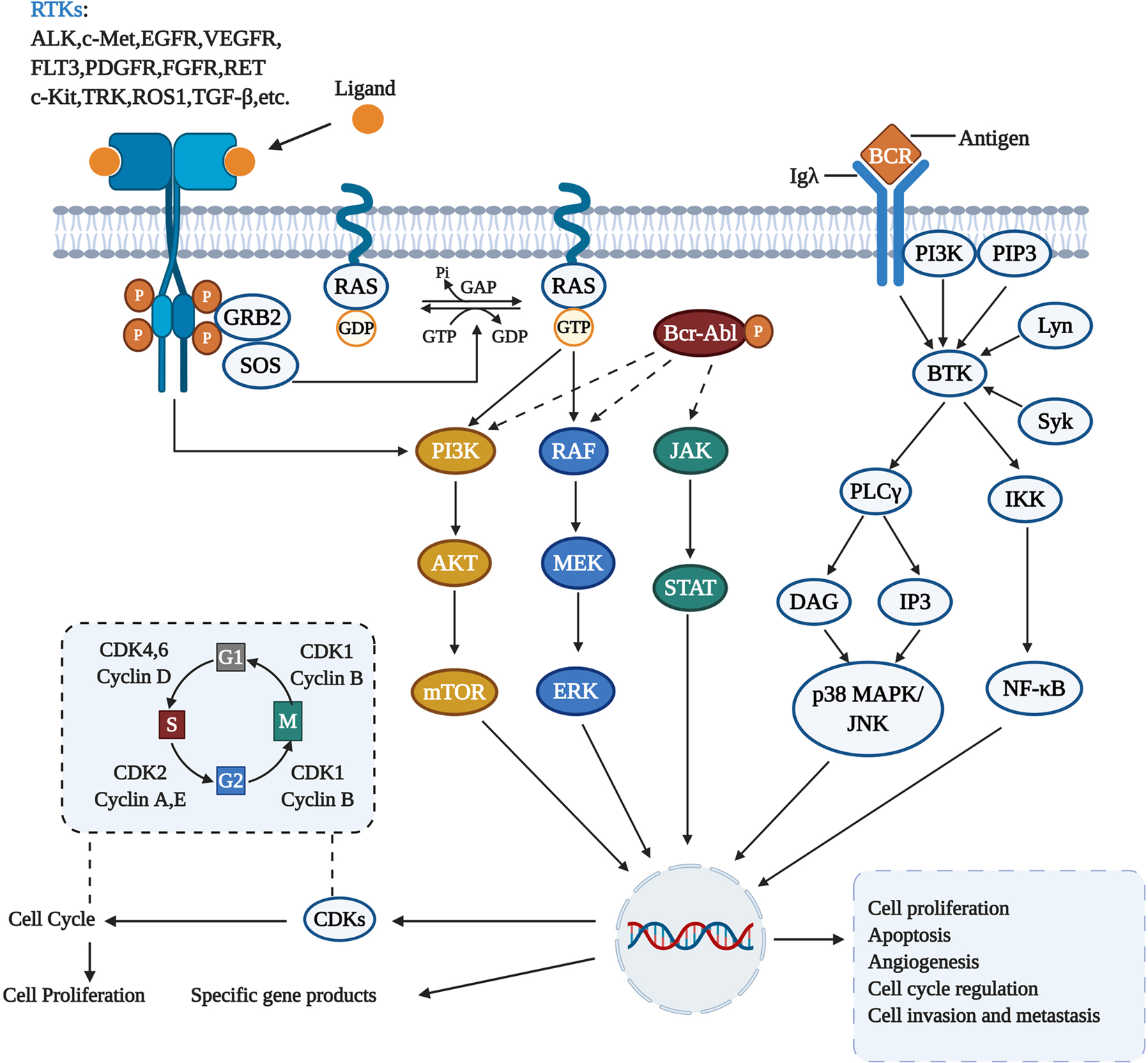

Activation of different protein kinase-dependent pathways. The set of RTKs influences a small number of intermediaries, such as phosphoinositide 3-kinase (PI3K) and mitogen-activated protein kinases (MAPK), thereby activating the complex signaling networks that are related to cell proliferation, differentiation, adhesion, apoptosis, and migration. The aggregation, activation, and depolymerization of the periodic CDK-cyclin complex are critical events driving cell cycle turnover. Figure created with BioRender.com
