Fig. 4
From: Small molecules in targeted cancer therapy: advances, challenges, and future perspectives

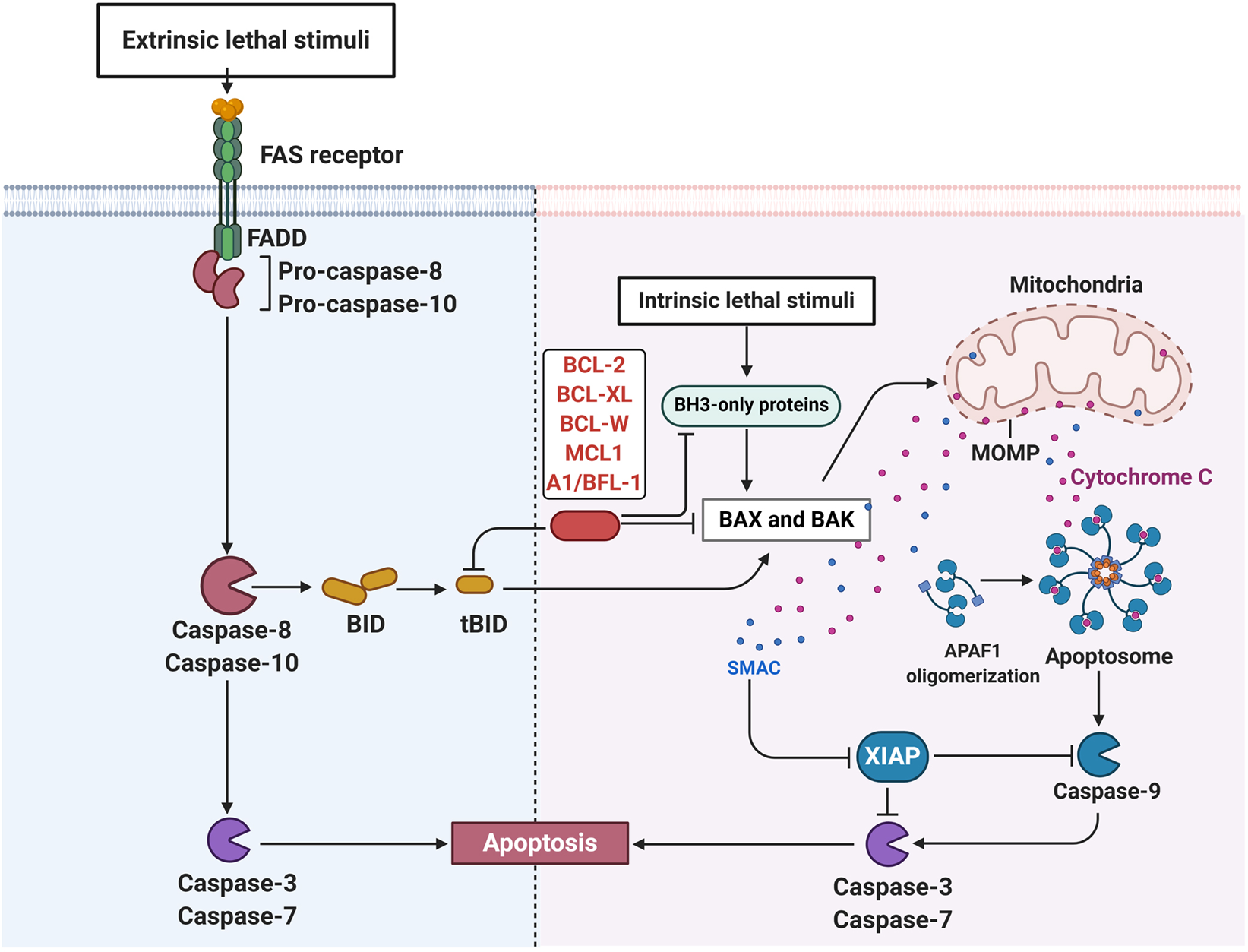

Schematic illustration of extrinsic and intrinsic pathways of apoptosis. In healthy cells, anti-apoptotic BCL-2 proteins (BCL-2, BCL-XL, BCL-W, MCL-1, and A1/BFL-1) bind to and inhibit activators (BH3-only proteins) and effectors (BAX and BAK). Treatment with BCL-2 inhibitors releases the inhibitory effects of anti-apoptotic BCL-2 proteins on activators and effectors. The subsequent activation and oligomerization of the pro-apoptotic proteins BAK and BAX result in the formation of mitochondrial outer membrane permeabilization (MOMP) and the release of cytochrome C as well as a second mitochondria-derived activator of caspase (SMAC) from the mitochondria. Cytochrome C can form a complex with procaspase 9 and apoptosis protease-activating factor 1 (APAF1), thereby activating caspase 9. Caspase 9 then activates procaspase 3 and procaspase 7, resulting in cell apoptosis. Figure created with BioRender.com
