Fig. 4 | Signal Transduction and Targeted Therapy

Fig. 4

From: Targetable elements in SARS-CoV-2 S2 subunit for the design of pan-coronavirus fusion inhibitors and vaccines

Fig. 4

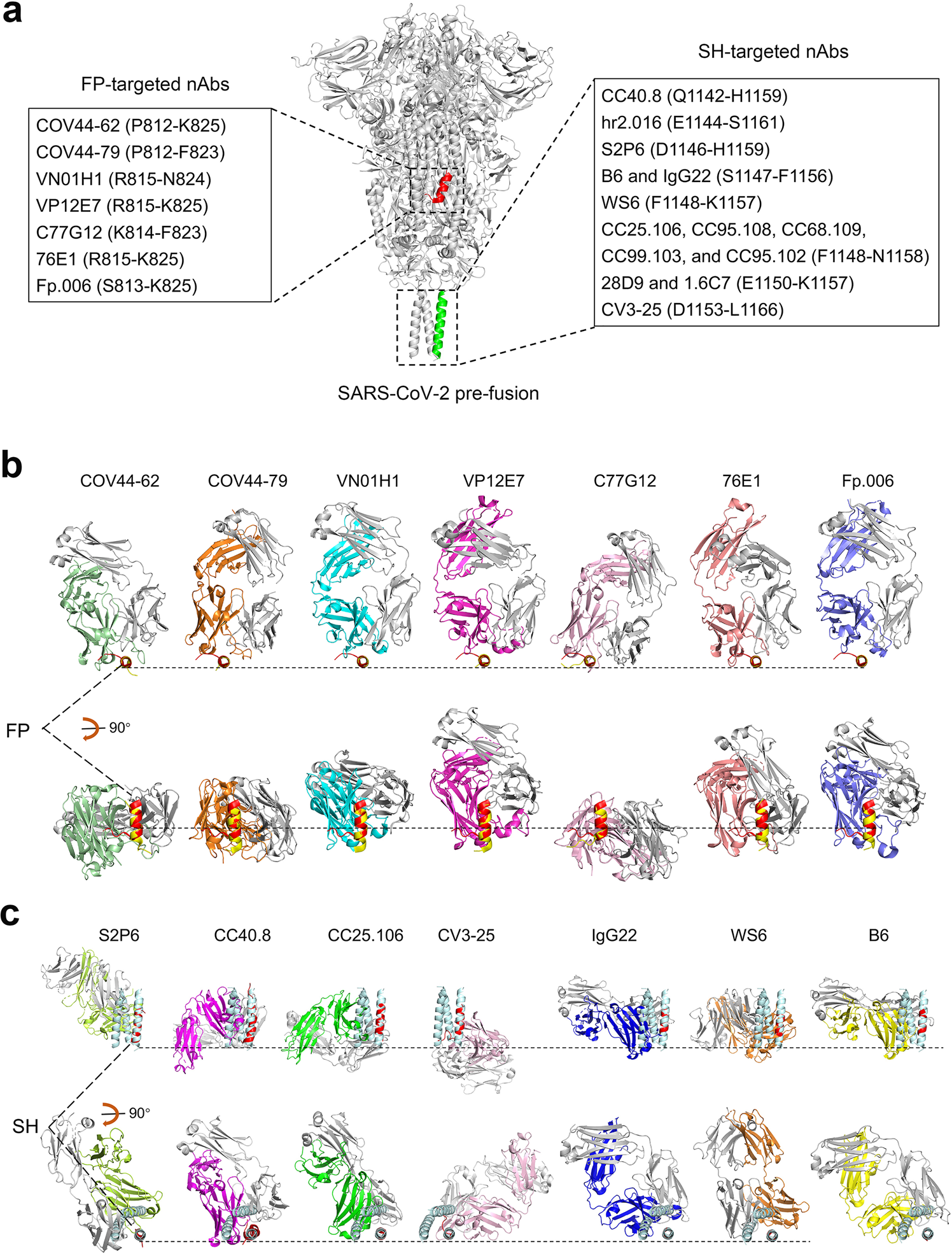

Broad-spectrum therapeutic nAbs targeting fusion peptide and stem helix. a S2 epitopes recognized by FP-targeted nAbs and SH-targeted nAbs are listed along with the SARS-CoV-2 pre-fusion S protein (PDB: 6XR8). Helical fusion peptide region (R815-V826) is colored red, and stem helix (P1140-S1161) is in green. b, c The binding mode of each nAb to fusion peptide (b) or stem helix (c). Each nAb-epitope peptide complex is aligned with the SARS-CoV-2 pre-fusion S protein (PDB: 6XR8) over fusion peptide (P812-V826, red) or stem helix (P1140-S1161, palecygan). The nAbs-bound peptides in the complex are colored yellow (b) and red (c), respectively. The light chain of each nAb is colored in gray, and the heavy chain is in a different color to distinguish
