Fig. 1 | Signal Transduction and Targeted Therapy

Fig. 1

From: Microcolin H, a novel autophagy inducer, exerts potent antitumour activity by targeting PITPα/β

Fig. 1

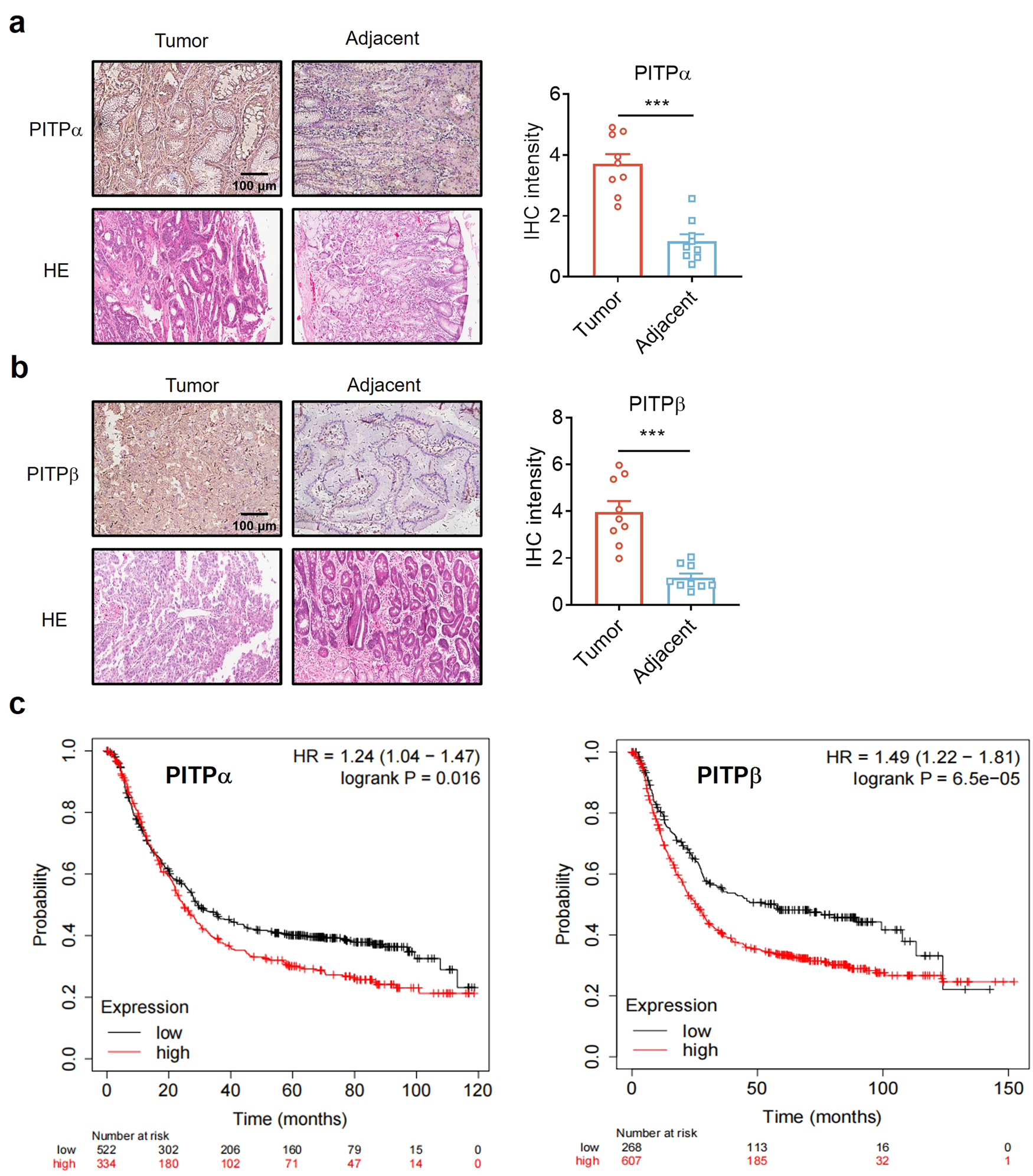

PITPα/β were highly expressed in tumour tissues and were associated with a poor prognosis in gastric cancer. a, b PITPα/β expression in gastric cancer patients revealed by IHC staining. Representative images from a tissue microarray are shown. Original magnification, ×10; scale bar: 100 μm, n = 9 per group. c Kaplan‒Meier analysis (http://kmplot.com) of overall survival defined by PITPα/β expression in gastric cancer patients. Data are presented as the mean ± SEM. *P < 0.05, **P < 0.01, ***P < 0.001
