Fig. 4
From: Mpox (formerly monkeypox): pathogenesis, prevention and treatment

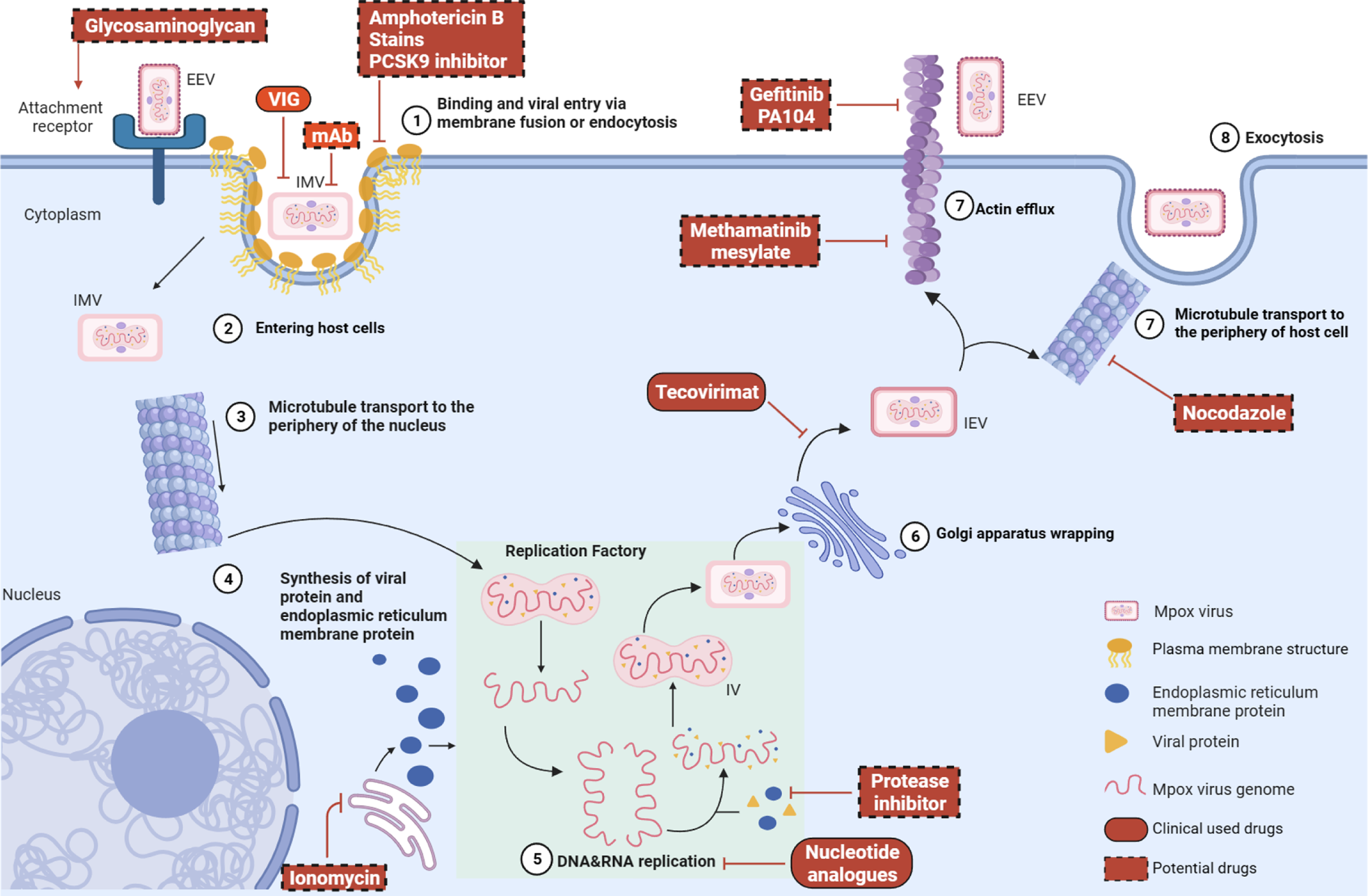

The life cycle of Mpox virus replication in hosts and potential targets for anti-Mpox virus drugs. The complete life cycle of Mpox virus infection: from entry into host cells to excretion. Briefly, both EEV and IMV viral particles penetrate the host membrane through membrane fusion and endocytosis. Mpox virus viral particles utilize glycosaminoglycans as host receptor. IMV particles enter the cytoplasm and are transported to the perinuclear replication factory via microtubules. The released Mpox virus genome serves as a template for DNA replication. Furthermore, IMV are enveloped by the Golgi apparatus to form IEV, and are transported to the cell surface via actin or microtubules. Part of the important drugs targeting each stage of the replication process are listed. EEV extracellular enveloped virions, IMV intracellular mature virions, IEV intracellular enveloped virions, IV immature virion
