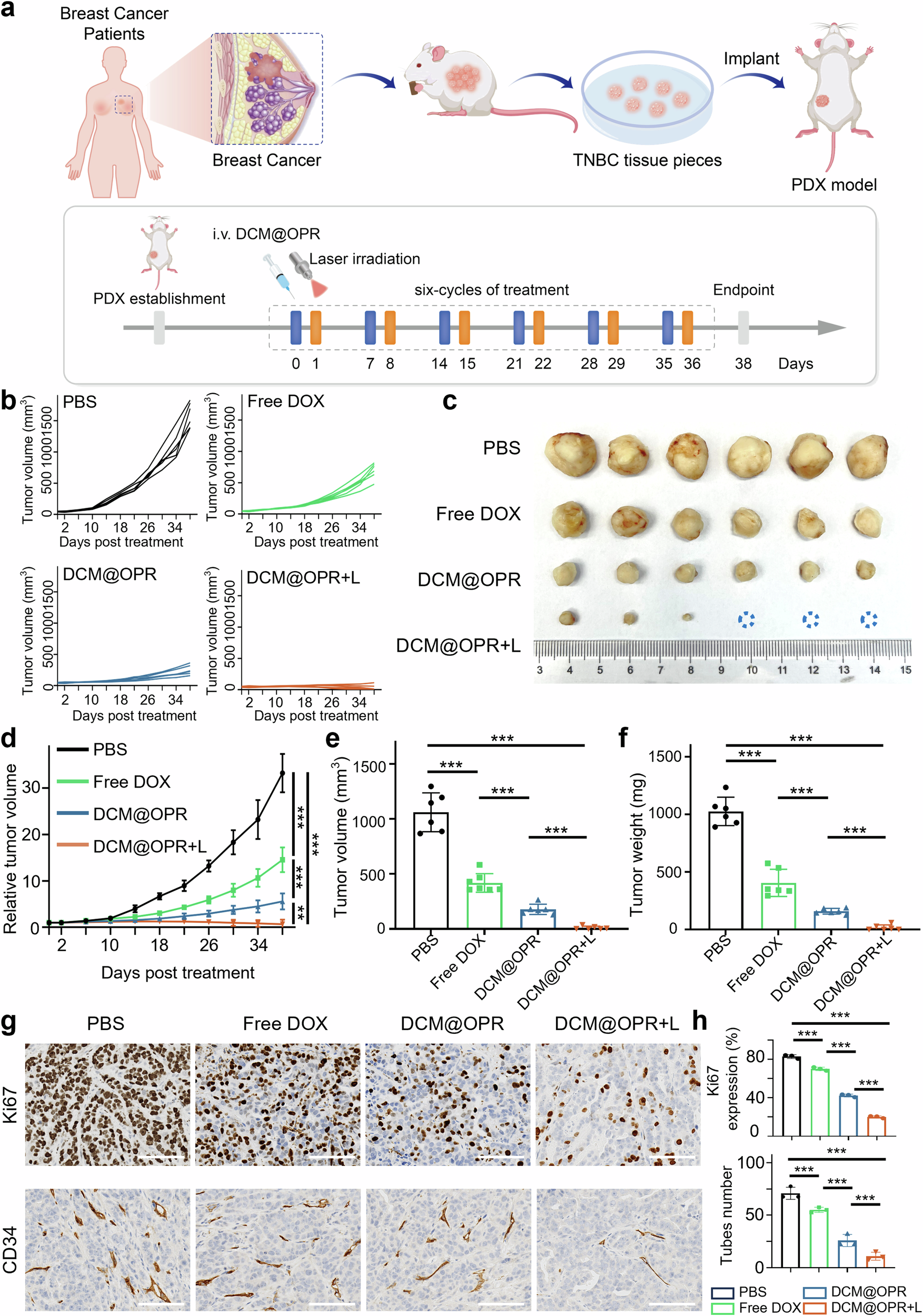

Fig. 6
From: Photodynamic gel-bombs enhance tumor penetration and downstream synergistic therapies
In vivo anti-tumor efficacy of photodynamic gel-bombs (DCM@OPR) in the PDX TNBC models. a Scheme of PDX model establishment and treatment procedure. b Tumor growth curves of the PDX mouse models. n = 6 per group. c Image of excised tumors after treatment on day 38. d Relative tumor volumes over time in mice from different treatment groups. n = 6 per group. e Excised tumor volume of different treatment groups. n = 6 per group. f Excised tumor weight of different treatment groups. n = 6 per group. g Ki67 and CD34 IHC staining of tumors from mice administered various treatments. n = 3 per group. Scale bars: 100 μm. h The IHC quantification results in each treatment group. n = 3 per group. Data are presented as mean ± SD. *p < 0.05, **p < 0.01, ***p < 0.001
