Fig. 3 | Signal Transduction and Targeted Therapy

Fig. 3

From: Tripeptide DT-109 (Gly-Gly-Leu) attenuates atherosclerosis and vascular calcification in nonhuman primates

Fig. 3

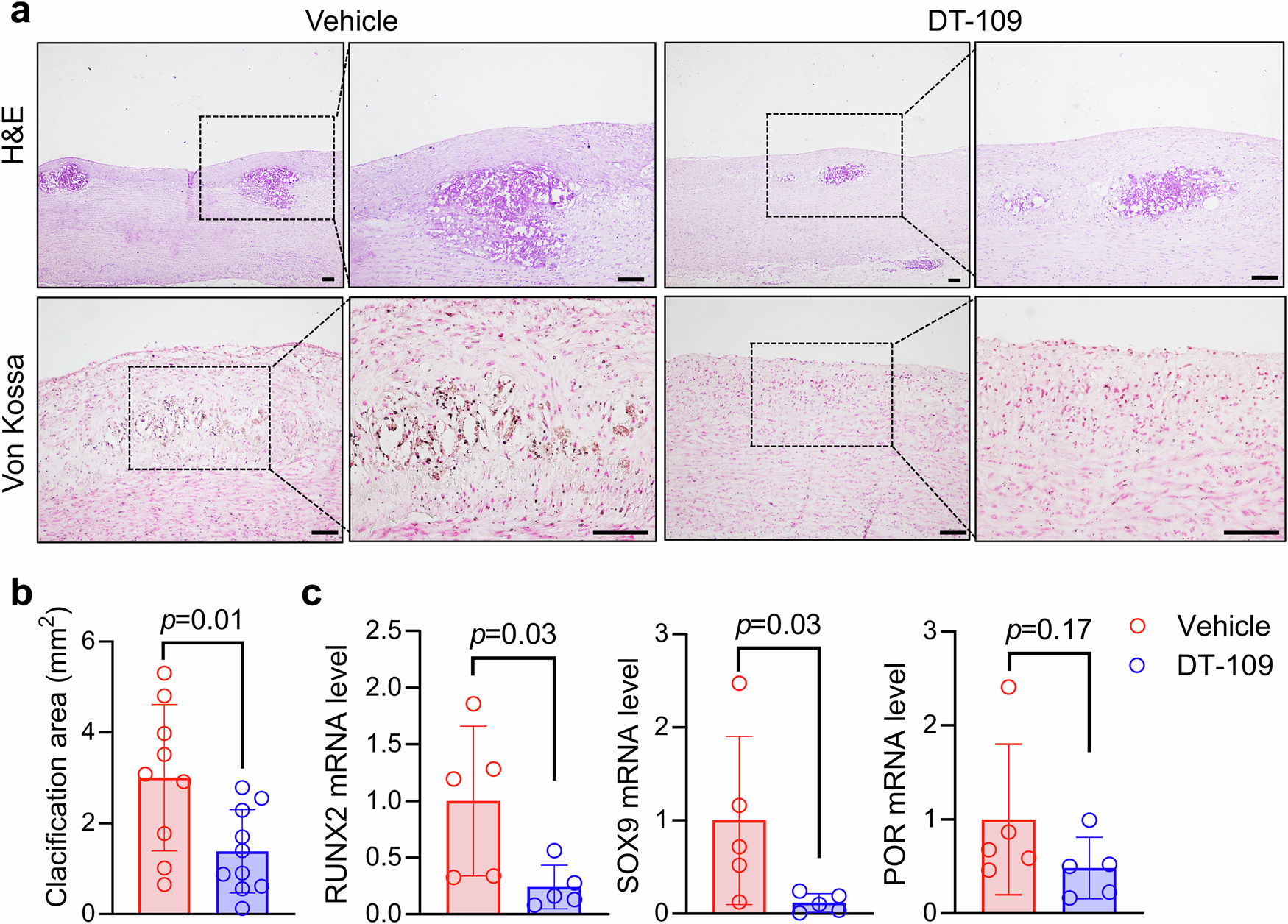

DT-109 attenuates vascular calcification in cynomolgus monkeys. a Hematoxylin and eosin (H&E) and calcification staining (Von Kossa) of the aortic arch (scale bar: 100 μm). b Quantification of calcified area in the aortic arch (vehicle, n = 9; DT-109, n = 10). c Extraction of total RNA from monkey common carotid arterial tissue and detection of runx family transcription factor 2 (RUNX2), SRY-box transcription factor 9 (SOX9), cytochrome p450 oxidoreductase (POR) mRNA expression by real-time PCR (n = 5 for each group). Data are presented as mean ± SD. All statistical comparisons between groups were evaluated by Kruskal–Wallis test
