Fig. 4
From: The stage of soil development modulates rhizosphere effect along a High Arctic desert chronosequence

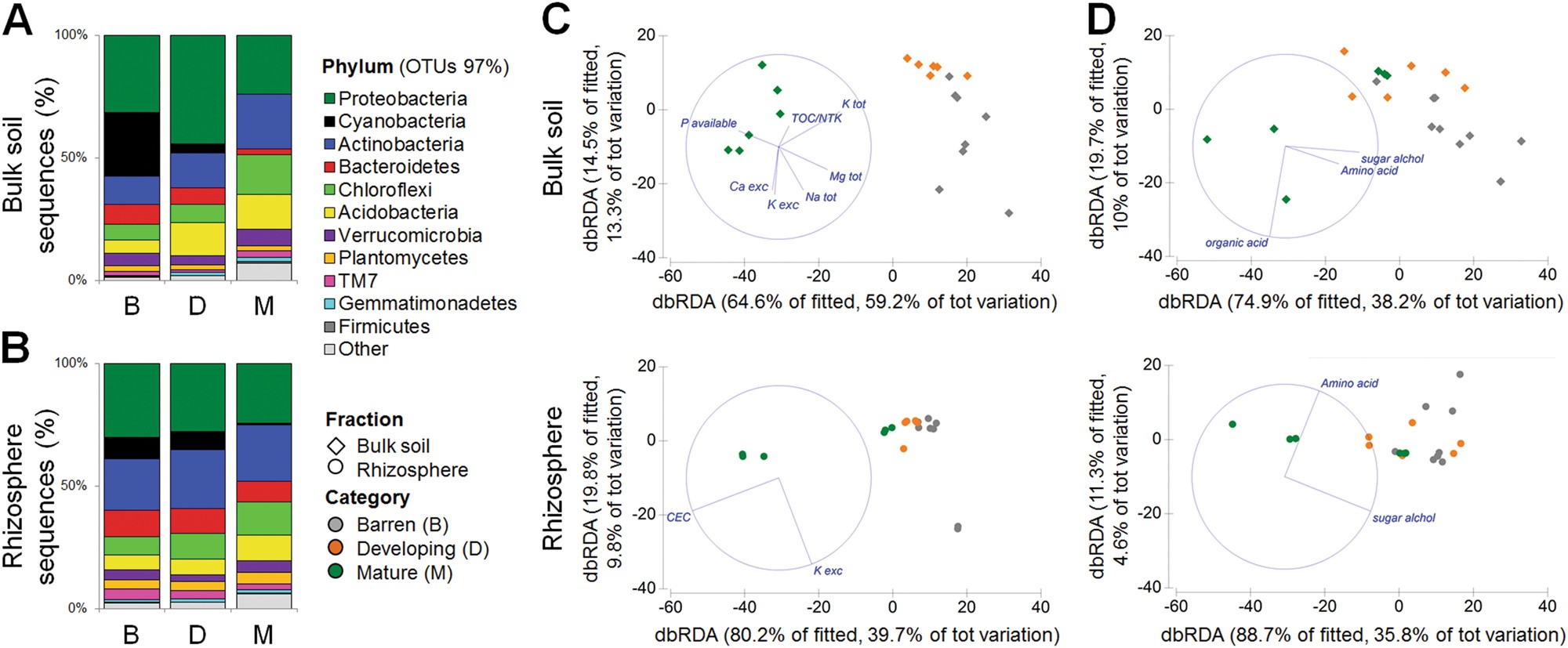

Taxonomy and correlation of bacterial diversity with soil properties across the Midtre Lovénbreen chronosequence. Bar charts analysis showing the relative abundance of the main phyla associated with bulk soils a and S. oppositifolia rhizospheres b. Distance-Base Redundancy Analysis (dbRDA), correlating c physicochemical properties (data set is described in Supplementary Table 1A) and d metabolite concentrations (data set is described in Supplementary Table 1B) with bacterial communities in bulk soil (upper panel) and rhizosphere soil (lower panel)
