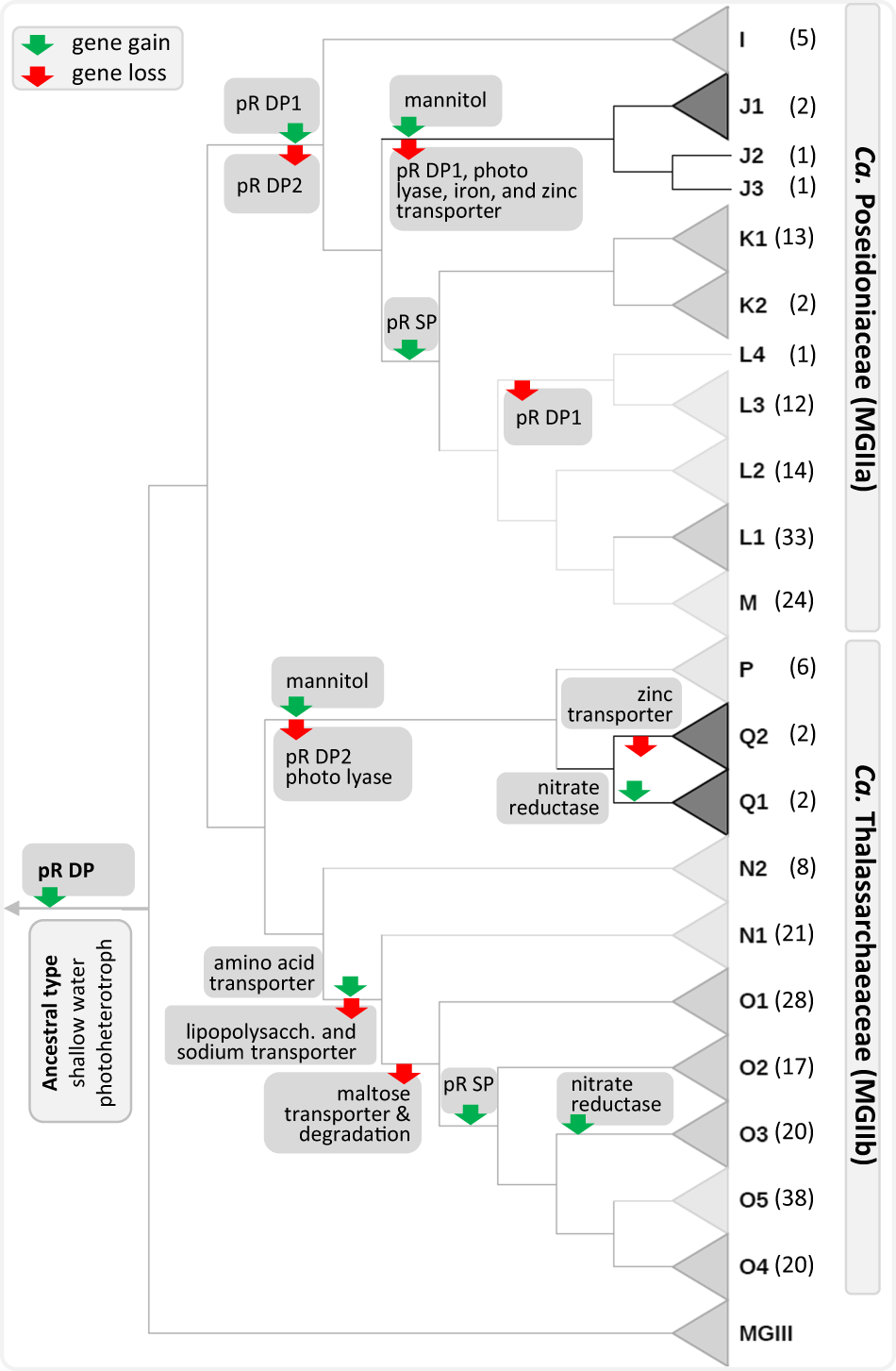

Fig. 5
Key metabolic shifts during the evolution of Ca. Poseidoniales. Evolutionary relationships among genera are shown via a cladogram with gene acquisitions (green arrows) and gene losses (red arrows). The heterotrophic, shallow water ancestor is show at the root of the tree (left) and its present-day descendants at the leaves (right). The mean sampling depths for each genus is indicated by the grey colour gradient of the clade triangle (light grey = shallowest; dark grey = deepest). pR DP proteorhodopsin deep photic clade, pR DP1 proteorhodopsin deep photic clade 1, pR DP2 proteorhodopsin deep photic clade2, mannitol mannitol synthesis, pR SP proteorhodopsin shallow photic clade
