From: The selective pressures on the microbial community in a metal-contaminated aquifer

Fig. 4

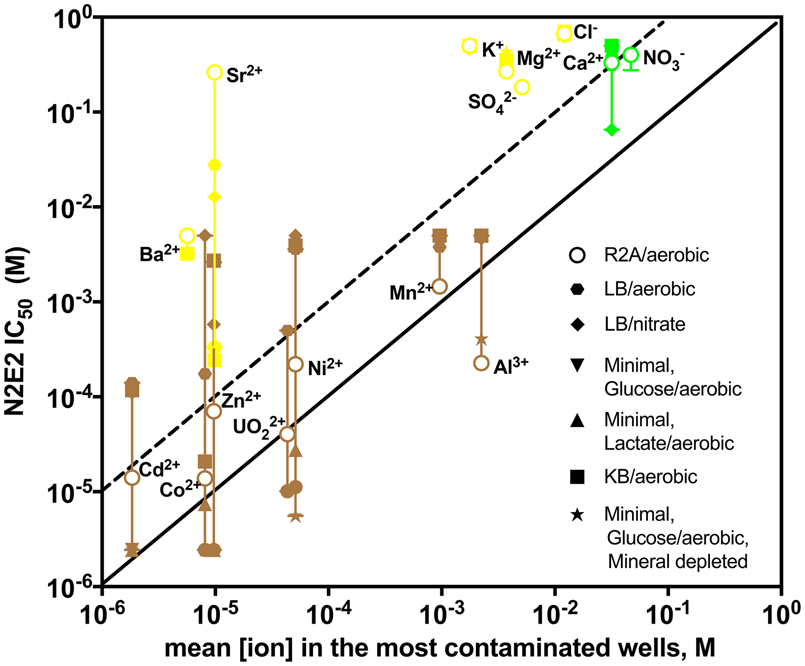

Impact of growth conditions on ion toxicity. IC50s for Pseudomonas fluorescens FW300-N2E2 (N2E2) compared with mean concentrations of each inorganic ion in the most contaminated wells. IC50s in each growth condition are indicated by symbols in the legend. Coloring is as in Fig. 3c. Diagonal lines represent N2E2 IC50s equivalent to and 10-fold above the mean [ion] in the most contaminated wells
