Fig. 2
From: Divergent methyl-coenzyme M reductase genes in a deep-subseafloor Archaeoglobi

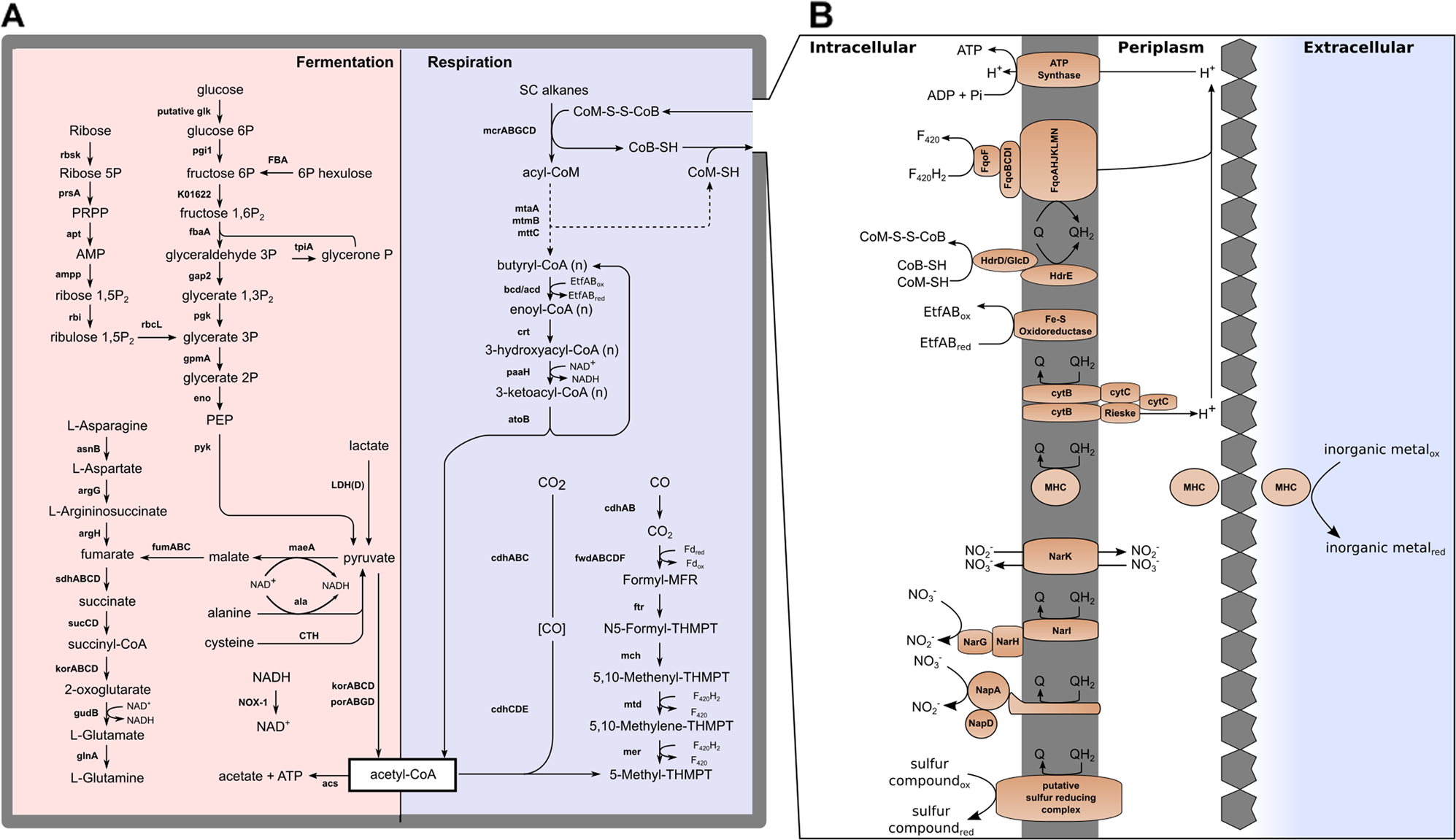

Metabolic reconstruction of the Ca. P. marinifundus genome. Metabolic reconstruction of the Ca. P. marinifundus genome. a Respiratory and fermentative pathways are shaded blue and red, respectively. b Proposed CoM-S-S-CoB disulfide regeneration and membrane energetics of Ca. P. marinifundus are shown. Genes associated with the pathways shown can be found in Supplementary Table 1
