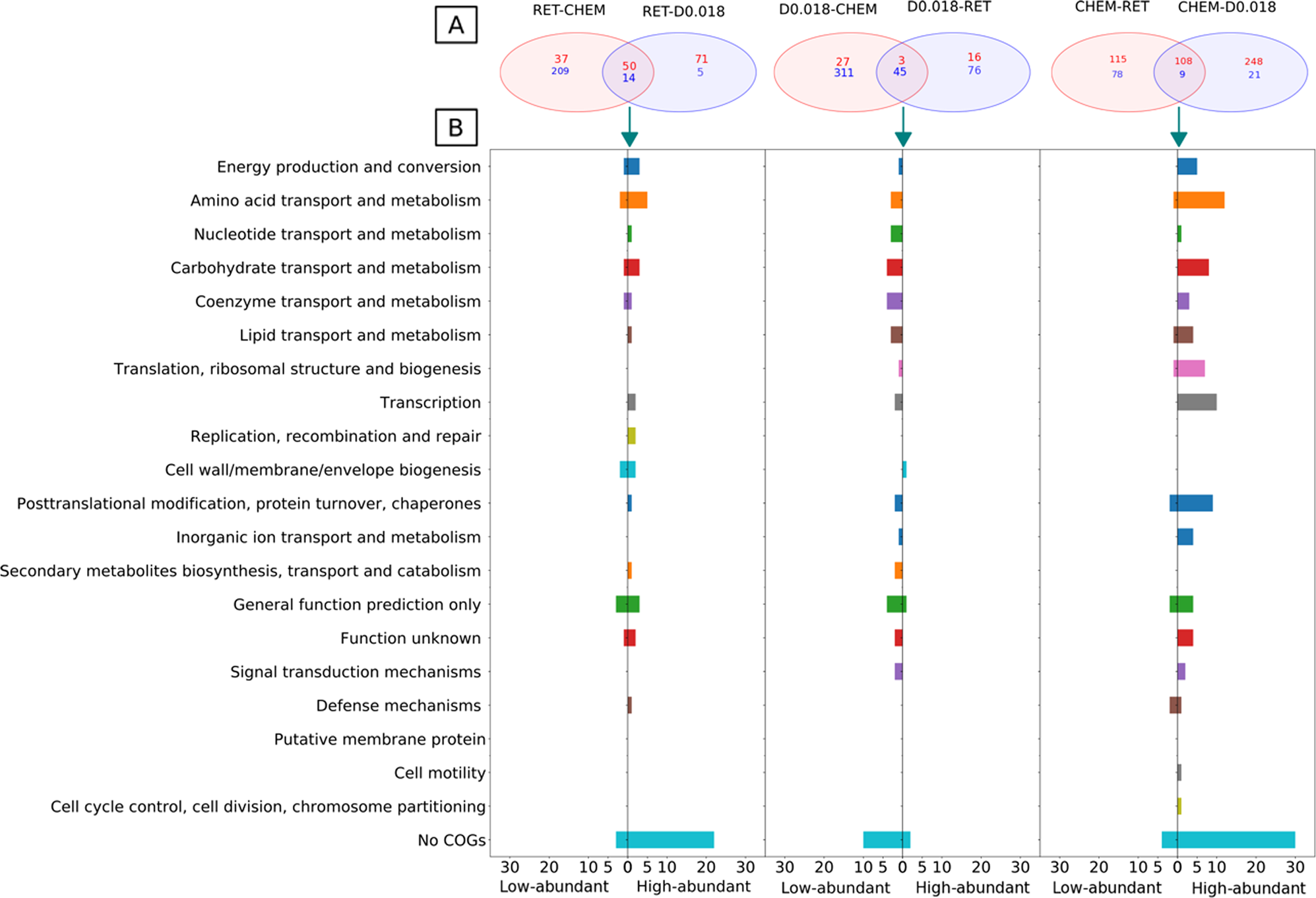

Fig. 7
Differentially abundant proteins from pair-wise comparisons between chemostats at different dilution rates and retentostats. Three comparison groups were created: CHEM (chemostats at Dhigh + Dmedium— 0.023, 0.032, 0.056 h−1, no mass transfer limitation); D0.018 (chemostats at Dlow—0.018 h−1, onset of mass transfer limitation), and RET (retentostat cultivation, full mass transfer limitation). a A Venn diagram illustrates differentially abundant proteins between the three groups. The proteins that lie in the intersection of a two-way Venn diagram depicts the overlap of differentially abundant proteins between comparison pairs representing the selection for consideration in more detail in panel b. Numbers in red represent significantly high-abundant proteins and those in blue represent significantly low-abundant proteins. b Distribution of overlapping significantly high and low-abundant proteins across clusters of orthologous groups (COG) categories in retentostats, D of 0.018 h−1 and chemostats (0.023, 0.032, and 0.056 h−1)
