Fig. 2
From: Patterns of protist diversity associated with raw sewage in New York City

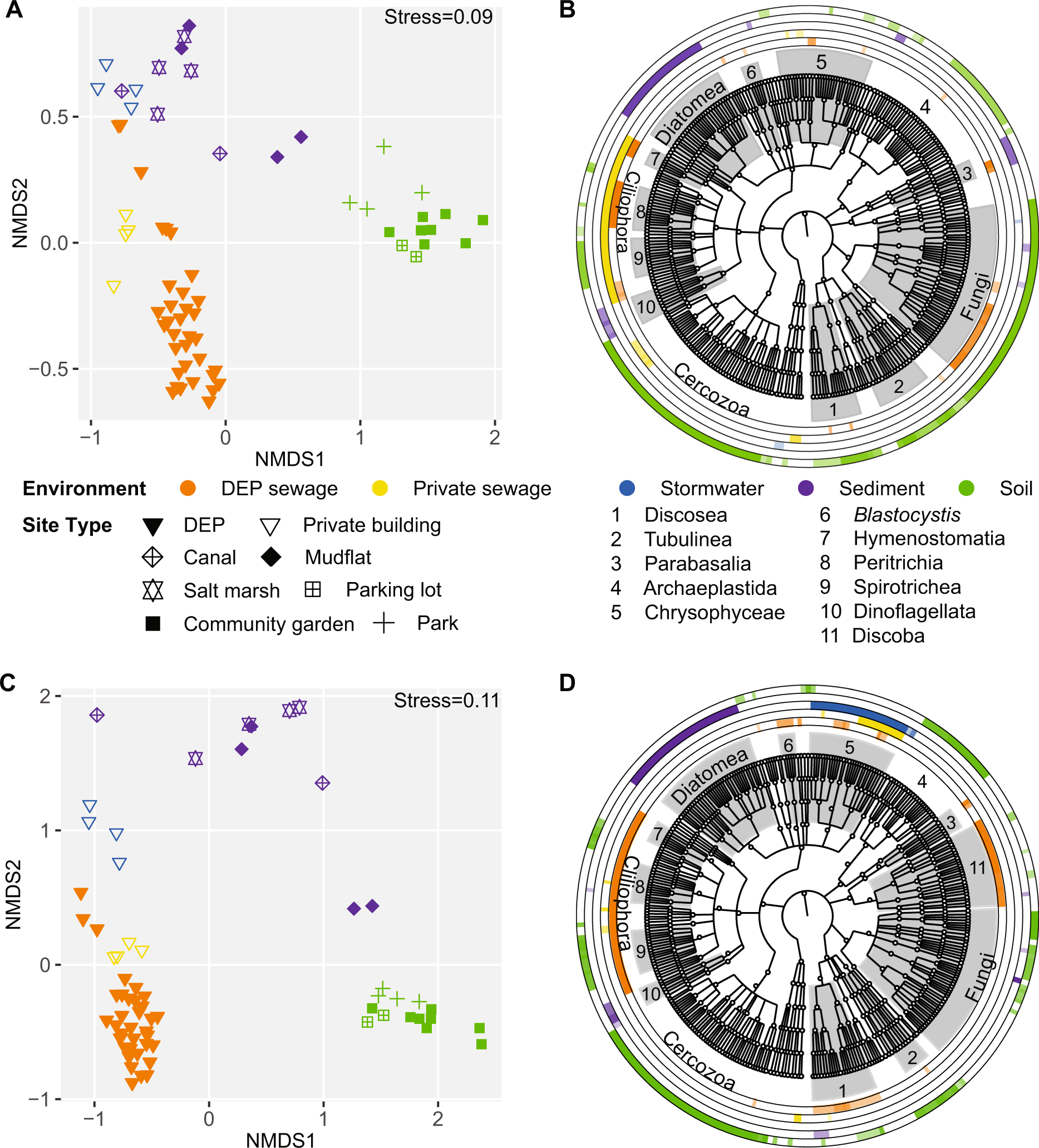

Beta diversity and LEfSe enrichment of protist taxa in five different environments. a, b V4 region. c, d V9 region. Beta diversity ordinations (a, c) were calculated from NMDS of the Bray–Curtis dissimilarity. Cladograms (b, d) show significant associations of protist taxa with an environment; each of the five environments is represented by a different ring. In all panels colors represent the environment from which each sample was collected, and shape represents the collection site; shading is proportional to the LDA score
