From: Patterns of protist diversity associated with raw sewage in New York City

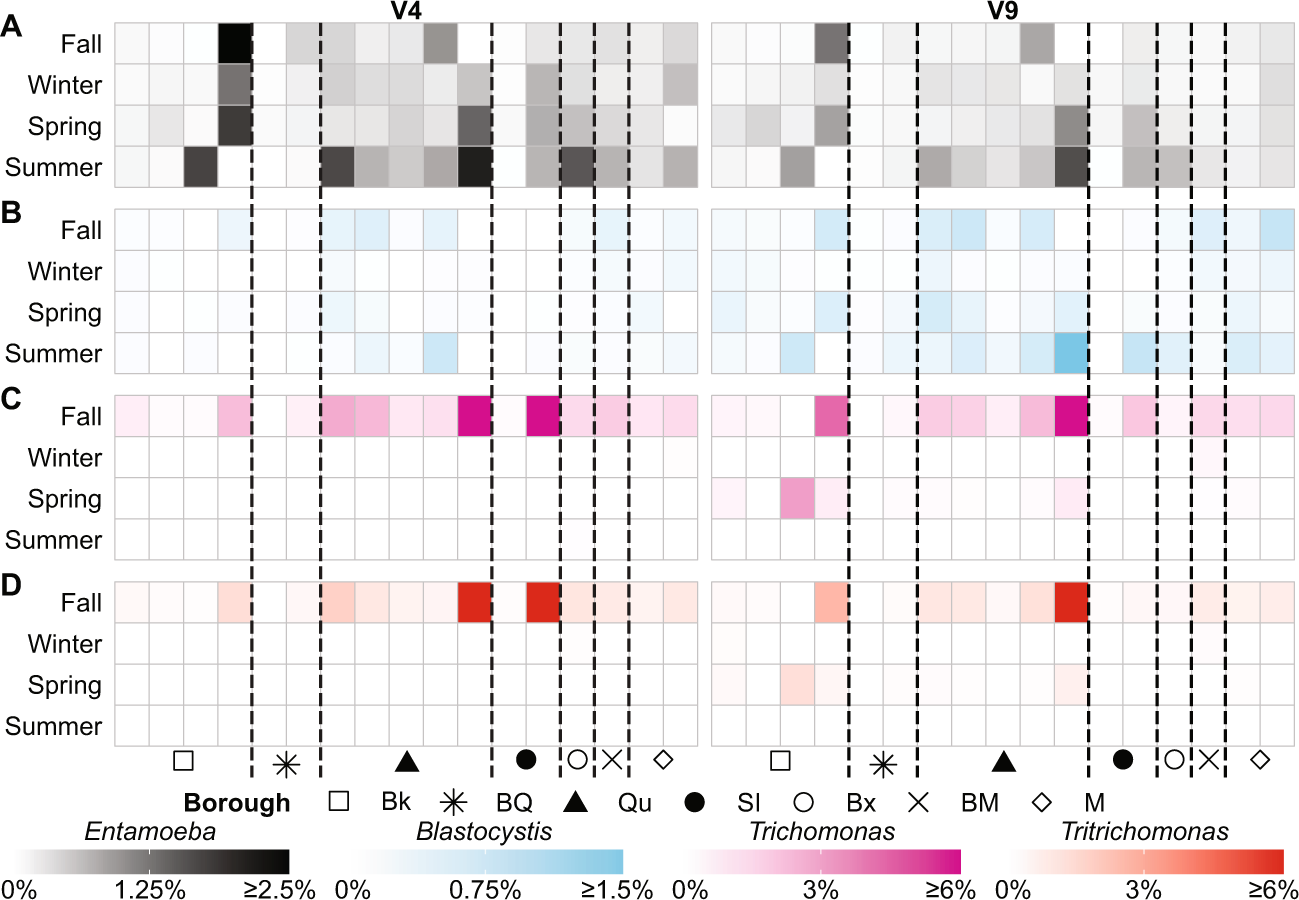

Relative abundances of genera of interest in DEP sewage samples over time from 18S rRNA gene amplicon sequencing. For all heat maps rows indicate collection season, columns represent samples, and each cell shows the average relative abundance from two replicate samples. a Entamoeba relative abundance. b Blastocystis relative abundance. c Trichomonas relative abundance. d Tritrichomonas relative abundance. In all panels lines separate samples by borough. Abbreviations: Bk = Brooklyn, BQ = Brooklyn/Queens, Qu = Queens, SI = Staten Island, Bx = Bronx, BM = Bronx/Manhattan, M = Manhattan
