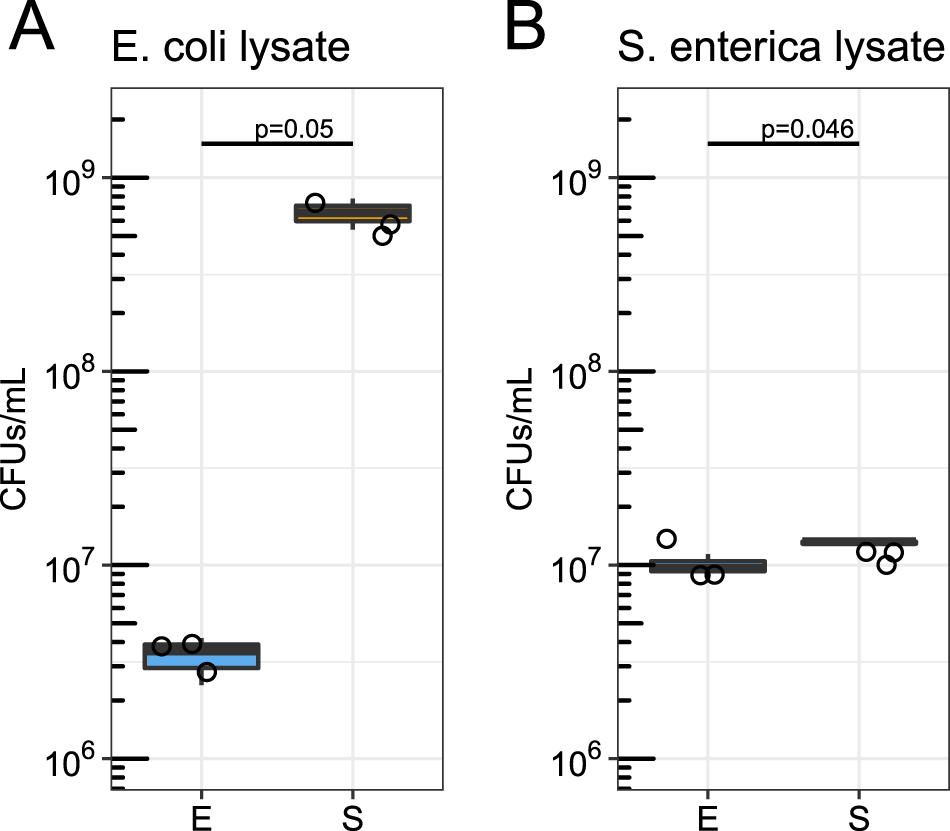

Fig. 4
From: Lytic bacteriophage have diverse indirect effects in a synthetic cross-feeding community
Growth of S. enterica and E. coli on sonicated cellular debris. E. coli (E) and S. enterica (S) monocultures were each grown in lactose minimal medium +25% (v/v) sonicated cellular debris lysate. a Monoculture yields on E. coli cellular debris lysate. b Monoculture yields on S. enterica cellular debris lysate. Cultures were inoculated with 5 × 105 cells/ml. Statistical significance was tested with a Kruskal Wallis test
