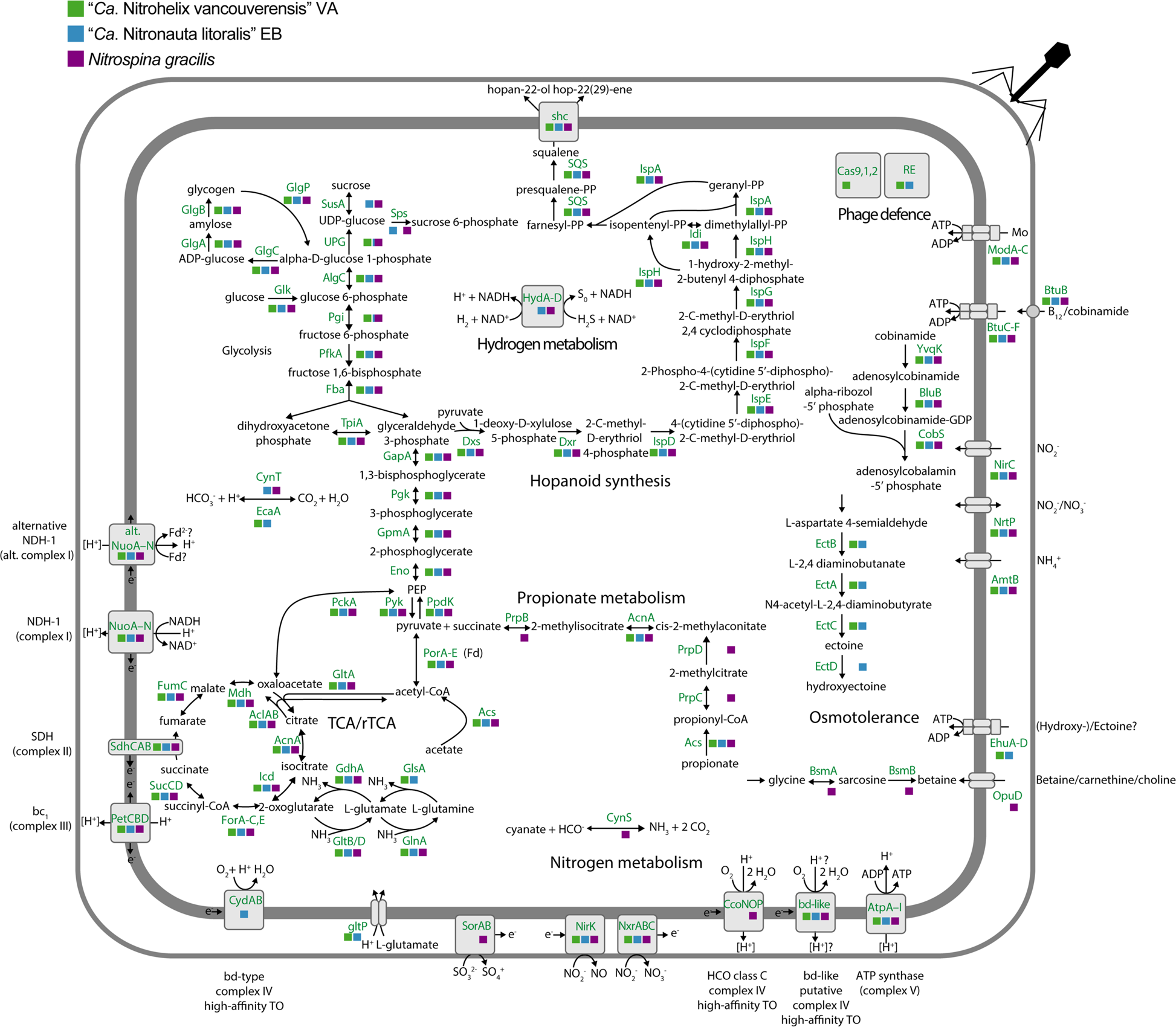

Fig. 5: Cell cartoon based on the annotation of “Ca. Nitrohelix vancouverensis” VA, “Ca. Nitronauta litoralis” EB and N. gracilis 3/211.
From: Genomic and kinetic analysis of novel Nitrospinae enriched by cell sorting
The colored squares indicate the presence or absence of the respective genes, “Ca. Nitrohelix vancouverensis” VA is shown in green, “Ca. Nitronauta litoralis” EB in blue, and N. gracilis 3/211 in purple. The gene annotations are detailed in Table S5. Fd ferredoxin, RE restriction enzymes, TO terminal oxidase.
