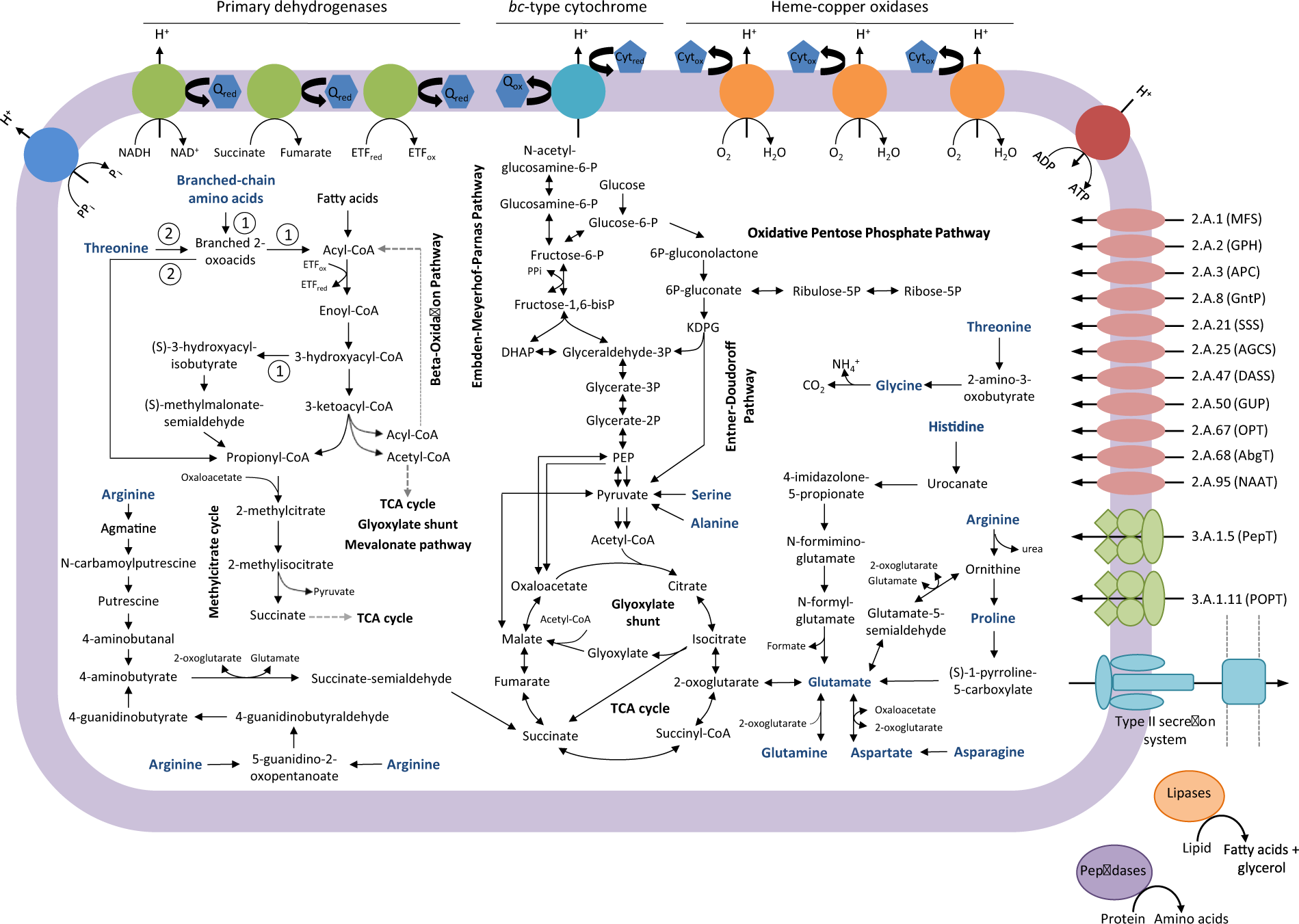

Fig. 6: Metabolic map representing catabolic and energy conservation pathways predicted from the genome of Woeseia oceani XK5.
From: Diversity and metabolism of Woeseiales bacteria, global members of marine sediment communities
Genes encoding the predicted pathways are listed in Table S14. The name of compounds serving as potential electron donors and carbon sources was written in blue. Numbers in circles indicate the catabolic route for valine (1) and threonine (2). Transporter types are indicated by their identifiers in the Transporter Classification (TC) database [38]. Full names of the corresponding transporter families are indicated in Table S14. Qox oxidized respiratory quinone, Qred reduced respiratory quinone, Cytox oxidized cytochrome, Cytred reduced cytochrome.
