Fig. 6: Differential gene expression in the hydrogen treatment.
From: Physiological dynamics of chemosynthetic symbionts in hydrothermal vent snails

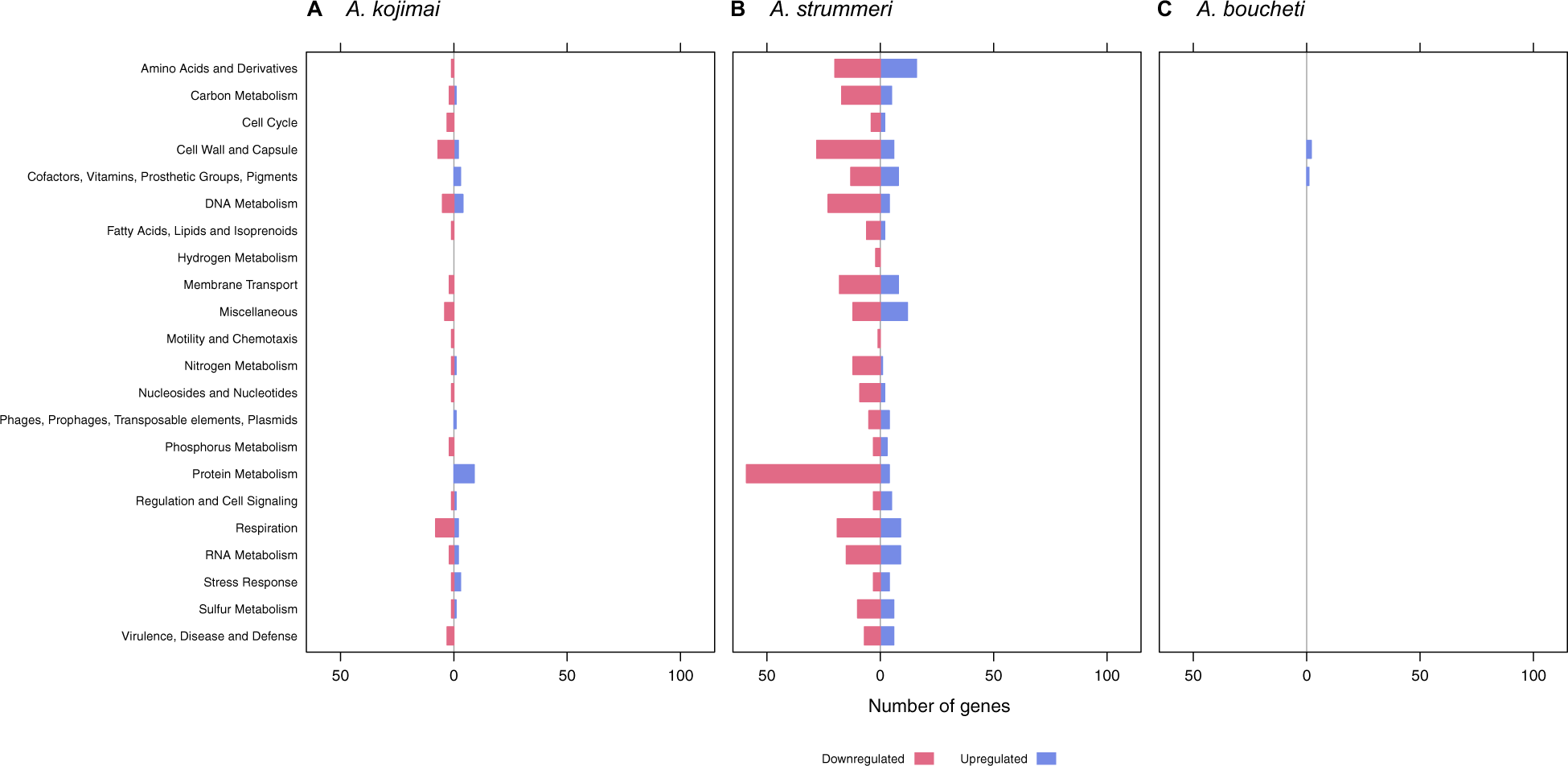

Differential gene expression in the hydrogen treated symbionts of (a) A. kojimai, (b) A. strummeri, and (c) A. boucheti based on an adjusted p-value of 0.05. Hypothetical genes are excluded from this plot for better visibility of gene expression changes in other categories (see also Supplementary Fig. S8). Comparisons are relative to the acclimation control samples.
