Fig. 5: Community core gene phylogeny.
From: Genomic network analysis of environmental and livestock F-type plasmid populations

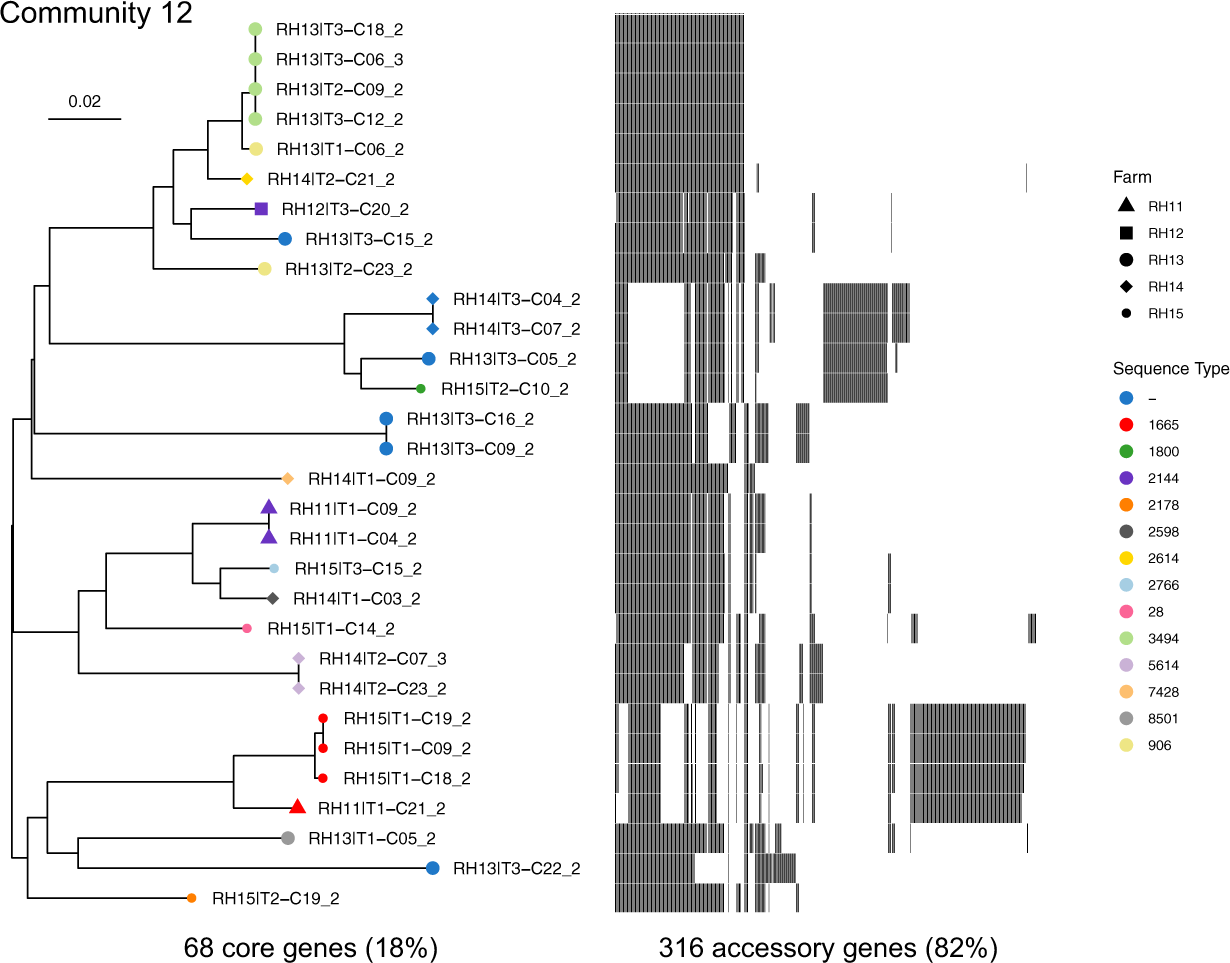

A neighbour-joining tree based on alignments of the 68 core genes. A heatmap of the 316 accessory genes is also shown. Node colour represents a host sequence type and node shape represents the farm. Unknown STs are labelled by ‘-’. Branch lengths have been corrected for homologous recombination.
